DIN-rail Energy Meter (Three phase,6 module) KLS11-DMS-012A All Products in DIN-rail energy meters

DIN-rail Energy Meter (Three phase,6 module)


  Product Images

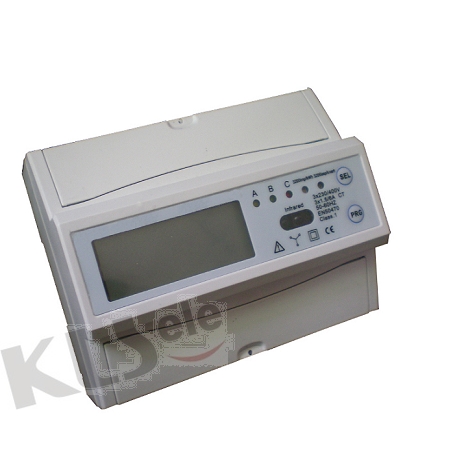

DIN-rail Energy Meter (Three phase,6 module)


  Product Information

DIN-rail Energy Meter (Three phase,6 module)
Features
With RS485 and Far-infrared communication port
Communication baud rate can be set 1200,2400,4800,9600,19200(option)
Three phases electricity Energy meter for DIN-rail mounting (six modules). CT Changing-Ratio fully programmable.Active energy measurement in three phases four wires alternating current circuits.

Standard compliance
GB/T17215-2002
IEC62053-21:2003

Accuracy Class
1.0 Class
Reference Voltage ( Un)
230/400V AC (3~)
Operating Voltage
161/279 - 300/520V AC (3~)
Impulse Voltage
6kV -1.2μS waveform
Rated Current (I)
1.5 /10 A
Maximum Rated Current (Imax)
6 /100A
Operating Current Range
0.4% I~ Imax
Operating Frequency Range
50Hz± 10%
Internal Power Consumption
<2W/10VA
Operating Humidity range
<75%
Storage Humidity range
<95%
Operating Temperature range
-10º C ~+50º C
Storage Temperature range
-30º C - +70º C
Overall dimensions(mm)
100×122×65 / 116x122x65 / 130x122x65 mm
Weight(kg)
about 0.7kg (net)
CT Changing-Ratio
Fully Programmable( 27 ratios)
Communication port
RS485 and Far infrared port
Data save
More than 20 years
Protocol
MODBUS RTU


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
