DIN-rail Energy Meter (Three phase,4 module) KLS11-DMS-010A All Products in DIN-rail energy meters

DIN-rail Energy Meter (Three phase,4 module)

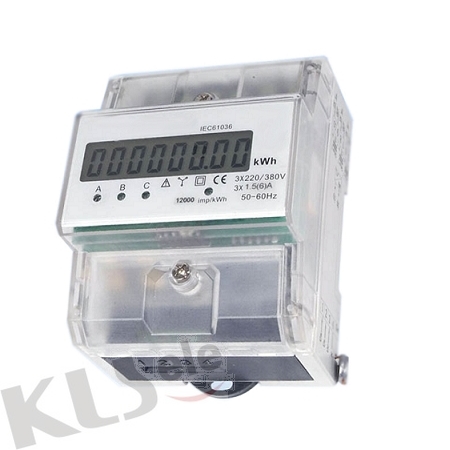

  Product Images
DIN-rail Energy Meter (Three phase,4 module) DIN-rail Energy Meter (Three phase,4 module)


  Product Information
DIN-rail Energy Meter (Three phase,4 module)
Functions And Characteristics:
1. Forward and reverse energy measurement: accurately measure forward and reverse power
2. Measurement in wide range and good ability in overload. Small volume.
3.  Indication power for each phase.


KLS11-DMS-010A: (Three phase,4 module,LCD TYPE )   Electrical  Characteristics:

Accuracy Class
1.0 Class
Reference Voltage ( Un)
3*220V/380V;3*230V/400V
Rated Current
 5(30)A; 10(40)A; 5(80)A
Operating Frequency Range
50-60Hz
Connection Mode
direct type
Operating Current Range
0.4% I~ Imax
Internal Power Consumption
<0.6W/3VA
Operating Humidity range
<75%
Storage Humidity range
<95%
Operating Temperature range
-20º C ~+65º C
Operating Temperature range
-30º C - +70º C

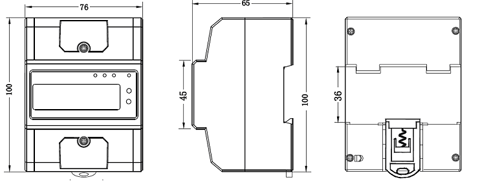

Overall dimensions (L×W×H)
100×76×65 / 116x76x65 / 130x76x65 mm
Weight(kg)
about 0.2kg (net)
Executive Standard:
GB/T17215-2002; IEC61036-2000
Display
LCD
crust
transparent crust / Opaque  crust


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
