DIN-rail Energy Meter (Single Phase ,4 Module) KLS11-DMS-004A All Products in DIN-rail energy meters

DIN-rail Energy Meter (Single Phase ,4 Module)


  Product Images

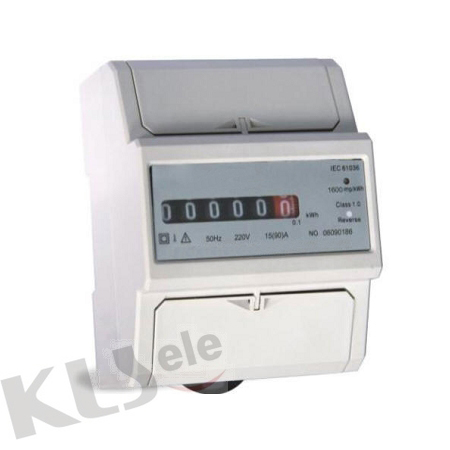

DIN-rail Energy Meter (Single Phase ,4 Module) DIN-rail Energy Meter (Single Phase ,4 Module)


  Product Information

DIN-rail Energy Meter (Single Phase ,4 Module)
Type KLS11-DMS-004A single phase DIN rail modular energy meter is a kind of new style single phase electronic watt-hour meter, the meter completely accord with relevant technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and international standard IEC62053-21:2003. It can accurately and directly measure active energy consumption from single phase AC electricity net. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

KLS11-DMS-004A    ( Electronic counter  TYPE,1P2W ) Electrical  Characteristics:

Accuracy Class
1.0 class
Reference Voltage
110/120/220/230/240V AC
Rated Current
1.5(6)A;5(30)A;10(40)A;20(80)A; 5(100)A
Impulse Voltage
6kV 1.2μs waveform




Operating Current Range
0.4% I~ Imax
Operating Frequency Range
50-60Hz
Internal Power Consumption
<2W/10VA
Operating Humidity range
<75%
Storage Humidity range
<95%
Operating Temperature range
-20º C ~+65º C
Storage Temperature range
-30º C - +70º C

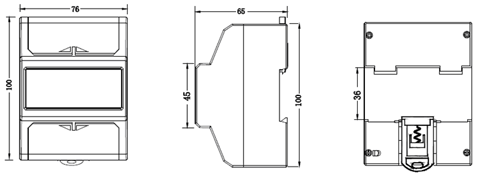

Overall dimensions (L×W×H)
100×76×65 / 116x76x65 / 130x76x65 mm
Weight(kg)
about 0.2kg (net)
Display
Electronic counter 5+1 = 99999.9kWh


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
