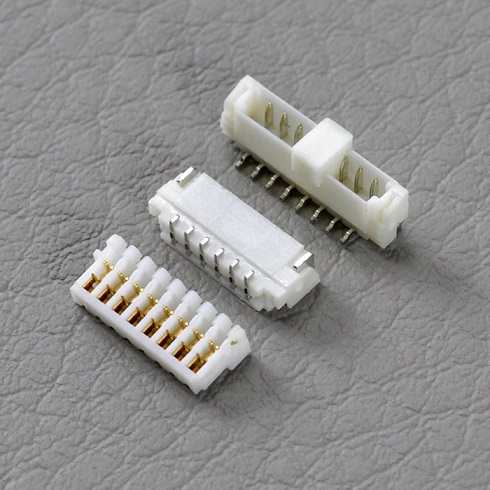

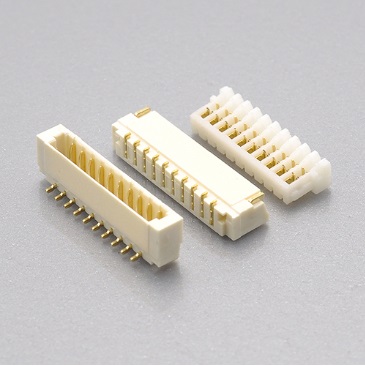

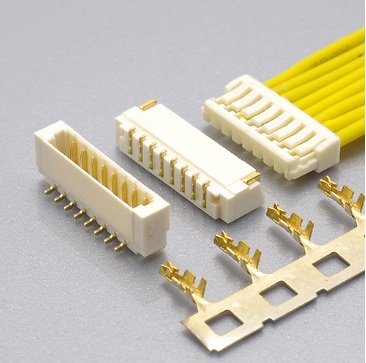

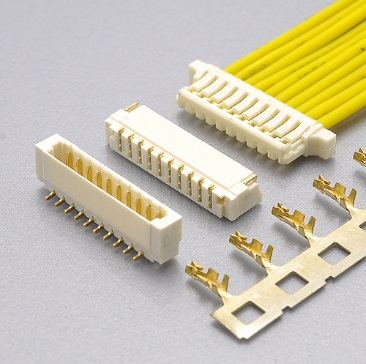

0.80mm Pitch SUR wire to board IDC connector
Order information:
KLS1-XL1-0.80-XX-H
XX-No.of 02~20 pins
H-Hosing VM-Vertical SMT Pin RM-Horizontal SMT Pin T-Terminal
Specifications
â—†Material: Nylon66 or LCP UL 94V-0
â—†Contact : Phosphor Bronze
â—†Plating : Plated Tin or Gold Flash Lead over Nickel
â—†Current rating:0.5A AC,DC
â—†Voltage rating:30V AC,DC
◆Temperature range:-35℃~+85℃
â—†Insulationresistance:100MΩ Min.
â—†Withstanding voltage:200V AC minute
â—†Contact resistance:20mΩ Max. |
