Hard Metric Connector (Type A/C,Female,Dip 90) KLS1-HBC2 All Products in Future bus connectors & Hard metric connectors

Hard Metric Connector (Type A/C,Female,Dip 90)

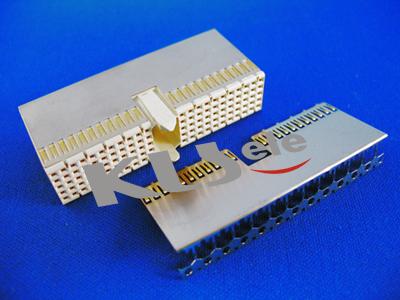

  Product Images
Hard Metric Connector (Type A/C,Female,Dip 90) Hard Metric Connector (Type A/C,Female,Dip 90)


  Product Information

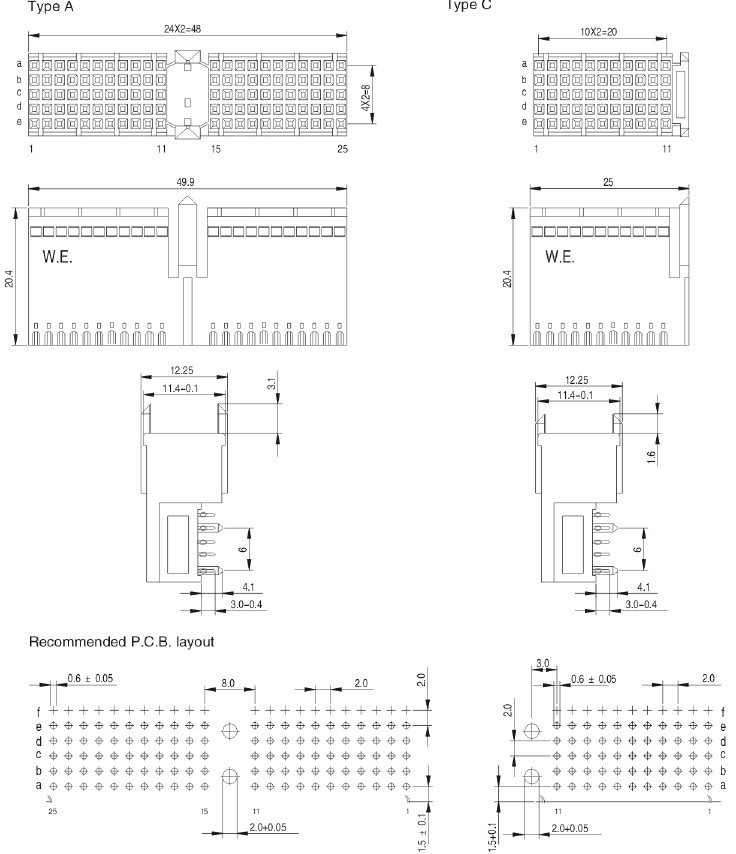

2.0mm Hard Metric Connector (Type A/C,Female,Dip 90)

Material:
Housing: LCP UL94V-0
Contacts:  Male-Brass / Female-Phosphor Bronze
Press-in force:100N/pin Max
Retention force:20N/pin Min
Electrical Characteristics:
Current Rating:1.5A at 20ºC,1.0A at 70ºC
Test Voltage:750 Vrms
Contact Resistance:20m(ohm) Max
Operating Temperature: -55ºC~+125ºC

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-HBC2-A-110-1-30Pitch 2.0mm Hard Metric Connector,A Type,Female Right,110 Way,With Upper Shield Cover,0.76uM Au Tin.
KLS1-HBC2-C-110-0-30Pitch 2.0mm Hard Metric Connector,C Type,Female Right,110 Way,Without Upper Shield Cover,0.76uM Au Tin.
KLS1-HBC2-C-55-0-30Pitch 2.0mm Hard Metric Connector,C Type,Female Right,55 Way,Without Upper Shield Cover,0.76uM Au Tin.
KLS1-HBC2-C-55-1-30Pitch 2.0mm Hard Metric Connector,C Type,Female Right,55 Way,With Upper Shield Cover,0.76uM Au Tin.
