You are here: Home > Products > Connectors > Future bus connectors & Hard metric connectors
Hard Metric Connector (Type A And Type C,Male,Dip 180) KLS1-HBC1 All Products in Future bus connectors & Hard metric connectors

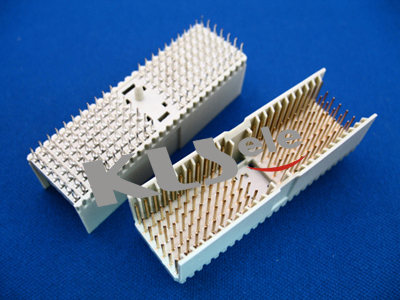

Hard Metric Connector (Type A And Type C,Male,Dip 180)


  Product Images
Hard Metric Connector (Type A And Type C,Male,Dip 180) Hard Metric Connector (Type A And Type C,Male,Dip 180)


  Product Information

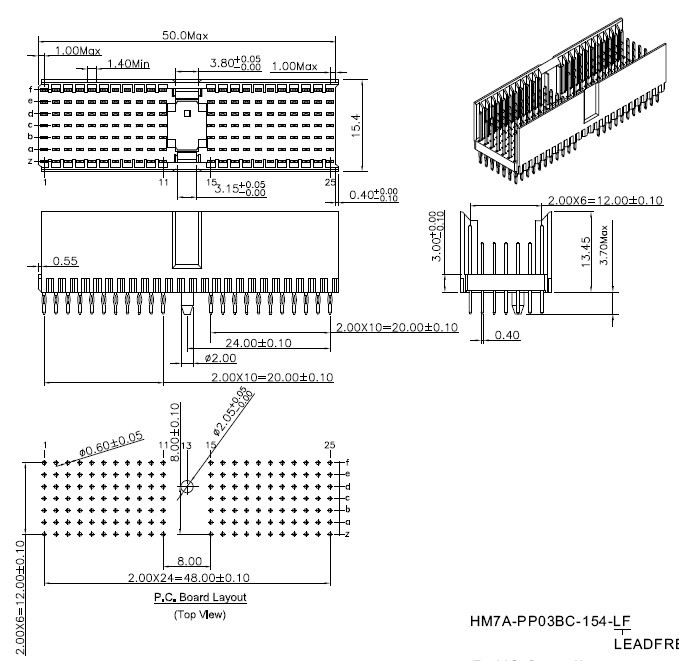

2.0mm Hard Metric Connector (Type A/Type C,Male,Dip 180)

Material:
Housing: LCP UL94V-0
Contacts:  Male-Brass / Female-Phosphor Bronze
Press-in force:100N/pin Max
Retention force:20N/pin Min
Electrical Characteristics:
Current Rating:1.5A at 20ºC,1.0A at 70ºC
Test Voltage:750 Vrms
Contact Resistance:20m(ohm) Max
Operating Temperature: -55ºC~+125ºC

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-HBC1-A-100-16-1-30-OPitch 2.0mm Hard Metric Connector,A Type,cPCI Telephony Spec,Male Straight,100 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-A-100-16-1-30-WPitch 2.0mm Hard Metric Connector,A Type,cPCI Telephony Spec,Male Straight,100 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-A-110-1A-0-30-OPitch 2.0mm Hard Metric Connector,A Type,Male Straight,110 Way,3.7MM/X8.2MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-A-110-1A-0-30-WPitch 2.0mm Hard Metric Connector,A Type,Male Straight,110 Way,3.7MM/X8.2MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-A-110-1B-0-30-OPitch 2.0mm Hard Metric Connector,A Type,Male Straight,110 Way,3.7MM/X9.7MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-A-110-1B-0-30-WPitch 2.0mm Hard Metric Connector,A Type,Male Straight,110 Way,3.7MM/X9.7MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-A-154-12-1-30-OPitch 2.0mm Hard Metric Connector,A Type,Compact PCI,Male Straight,154 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-A-154-12-1-30-WPitch 2.0mm Hard Metric Connector,A Type,Compact PCI,Male Straight,154 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-A-154-13-1-30-OPitch 2.0mm Hard Metric Connector,A Type,cPCI Hot Swap,Male Straight,154 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-A-154-13-1-30-WPitch 2.0mm Hard Metric Connector,A Type,cPCI Hot Swap,Male Straight,154 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-A-154-1A-1-30-OPitch 2.0mm Hard Metric Connector,A Type,Male Straight,154 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-A-154-1A-1-30-WPitch 2.0mm Hard Metric Connector,A Type,Male Straight,154 Way,3.7MM/X8.2MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-A-154-1B-1-30-OPitch 2.0mm Hard Metric Connector,A Type,Male Straight,154 Way,3.7MM/X9.7MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-A-154-1B-1-30-WPitch 2.0mm Hard Metric Connector,A Type,Male Straight,154 Way,3.7MM/X9.7MM,With Grounding Pins and Male 180º With Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-C-55-1A-0-30-OPitch 2.0mm Hard Metric Connector,C Type,Male Straight,55 Way,3.7MM/X8.2MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-C-55-1A-0-30-WPitch 2.0mm Hard Metric Connector,C Type,Male Straight,55 Way,3.7MM/X8.2MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-C-55-1B-0-30-OPitch 2.0mm Hard Metric Connector,C Type,Male Straight,55 Way,3.7MM/X9.7MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-C-55-1B-0-30-WPitch 2.0mm Hard Metric Connector,C Type,Male Straight,55 Way,3.7MM/X9.7MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-C-77-1A-0-30-OPitch 2.0mm Hard Metric Connector,C Type,Male Straight,77 Way,3.7MM/X8.2MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-C-77-1A-0-30-WPitch 2.0mm Hard Metric Connector,C Type,Male Straight,77 Way,3.7MM/X8.2MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,With Location Peg.
KLS1-HBC1-C-77-1B-0-30-OPitch 2.0mm Hard Metric Connector,C Type,Male Straight,77 Way,3.7MM/X9.7MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,Without Location Peg.
KLS1-HBC1-C-77-1B-0-30-WPitch 2.0mm Hard Metric Connector,C Type,Male Straight,77 Way,3.7MM/X9.7MM,Without Grounding Pins and Male 180º Without Upper Shield Cover,0.76uM Au Tin,With Location Peg.
