Nylon Cable Gland (M Long Type) KLS8-0624 All Products in Cable glands

Nylon Cable Gland (M Long Type)


  Product Images

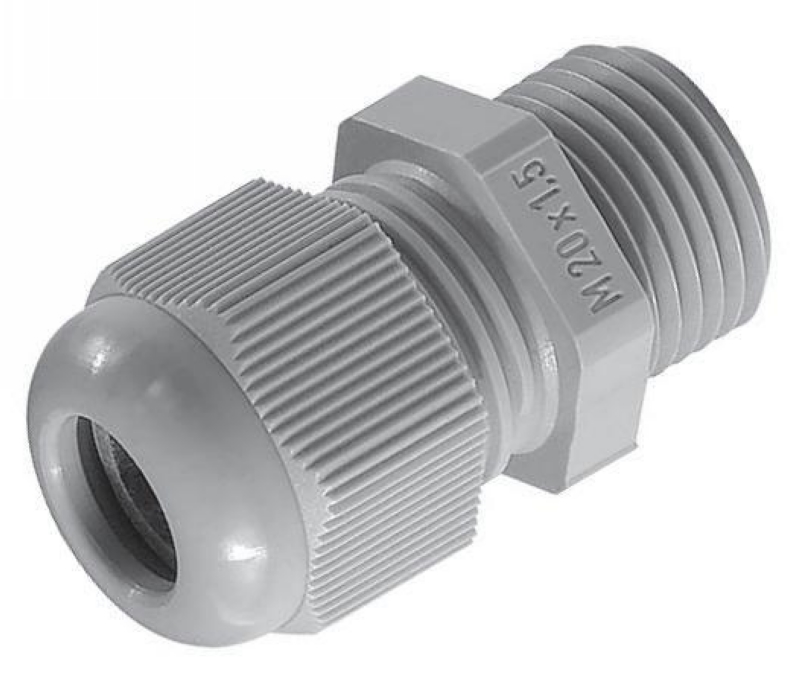

Nylon Cable Gland (M Long Type) Nylon Cable Gland (M Long Type)


  Product Information
Oder Information
KLS8-0624-M12x1.5-B

0624: M Long Type Nylon Cable Glands
M12x1.5: Item No.
B: Color Code:  B-Black    G-Gray

     Material:Nylon PA6
     Sealing:NBR, EPDM
     Working temperature:-40℃ ~100℃ , (120℃,short time)
     Characteristics:IP68(Rotate the part, and use O-ring)
     Color:  Black , light grey

Item No. Cable
Range
>IØI<
(mm)
Outer
 diameter
of thread
(mm)
Mounting hole diameter
(mm)
Thread
 length
L(mm)
Joint
 length
H(mm)
Wrench diameter
(MM)
    M12 x 1.5 3~6.5 12 12~12.3 15 22 16
    M12 x 1.5S 2~5 12 12~12.3 15 22 16
    M16 x 1.5 4~8 16 16~16.3 15 26 19
    M16 x 1.5S 2~6 16 16~16.3 15 26 19
    M18 x 1.5 5~10 18 18~18.3 15 27 22
    M18 x 1.5S 3~7 18 18~18.3 15 27 22
    M20 x 1.5 6~12 20 20~20.3 15 28 24
    M20 x 1.5S 5~9 20 20~20.3 15 28 24
    M22 x 1.5 10~14 22 22~22.3 15 30 27
    M22 x 1.5S 7~12 22 22~22.3 15 30 27
    M25 x 1.5 13~18 25 25~25.3 15 35 33
    M25 x 1.5S 9~16 25 25~25.3 15 35 33
    M32 x 1.5 16~21 32 32~32.3 15 34 36
    M32 x 1.5S 13~18 32 32~32.3 15 34 36
    M40 x 1.5 22~32 40 40~40.3 18 48 52
    M40 x 1.5S 20~26 40 40~40.3 18 48 52
    M50 x 1.5 32~38 50 50~50.3 18 49 60
    M50 x 1.5S 25~31 50 50~50.3 18 49 60
    M63 x 1.5 37~44 63 63~63.3 18 50 67
    M63 x 1.5S 29~35 63 63~63.3 18 50 67


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
