Nylon Cable Gland (PG Type) KLS8-0607 All Products in Cable glands

Nylon Cable Gland (PG Type)

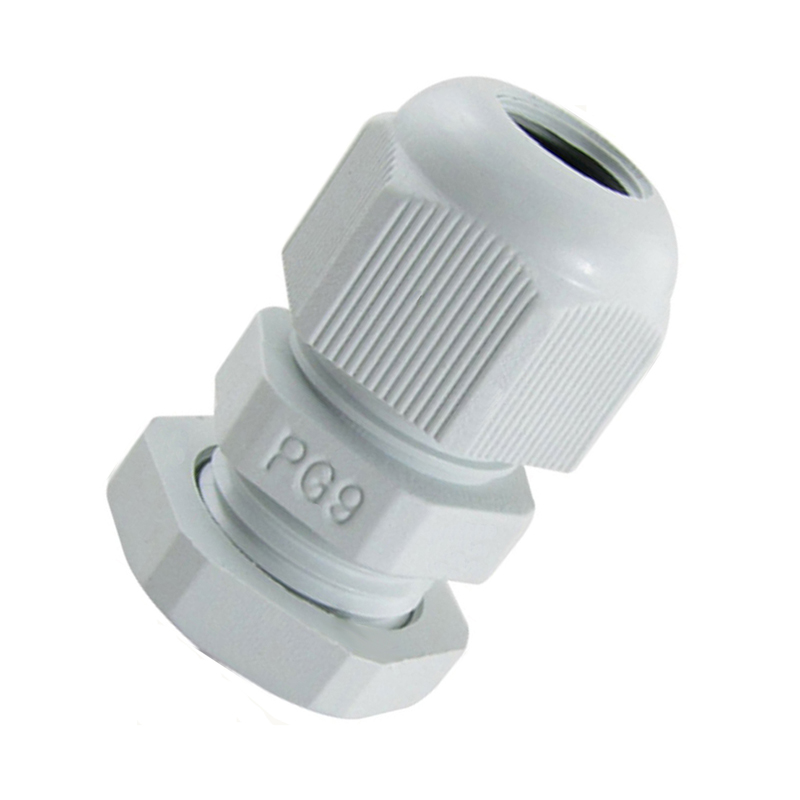

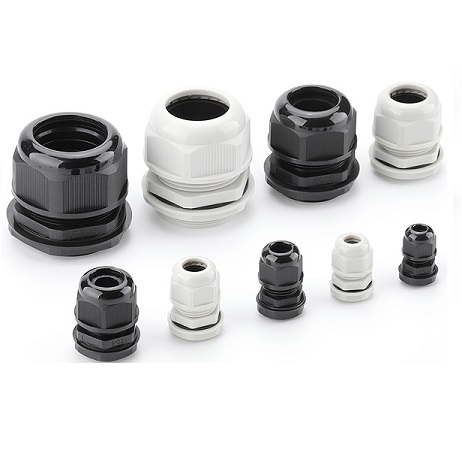

  Product Images
Nylon Cable Gland (PG Type) Nylon Cable Gland (PG Type)


  Product Information

Oder Information

KLS8-0607-PG-7-B0
0607: PG Type Nylon Cable Glands
PG-7: Item No.
B: Color Code:  B-Black    G-Gray

Material:Nylon PA6
Sealing:NBR, EPDM
Working temperature:-40℃ ~100℃ , (120℃,short time)
Characteristics:IP68(Rotate the part, and use O-ring)
Color:  Black , light grey

Item No. Cable
Range
>IØI<
(mm)
Outer
 diameter
of thread
(mm)
Mounting hole diameter
(mm)
Thread
 length
L(mm)
Joint
 length
H(mm)
Wrench diameter
(MM)
    PG-7  3~6.5 12.5 12.5~12.8 8 22 16
    PG-7S 2~5 12.5 12.5~12.8 8 22 16
    PG-9  4~8 15.2 15.2~15.5 8 26 19
    PG-9S 2~6 15.2 15.2~15.5 8 26 19
    PG-11 5~10 18.6 18.6~18.9 8 27 22
    PG-11S 3~7 18.6 18.6~18.9 8 27 22
    PG-13.5 6~12 20.4 20.4~20.7 9 28 24
    PG-13.5S 5~9 20.4 20.4~20.7 9 28 24
    PG-16 10~14 22.5 22.5~22.8 10 30 27
    PG-16S 7~12 22.5 22.5~22.8 10 30 27
    PG-19 12~16 24 24~24.3 10 30 27
    PG-19S 10~13 24 24~24.3 10 30 27
    PG-21 13~18 28.3 28.3~28.6 10 35 33
    PG-21S 9~16 28.3 28.3~28.6 10 35 33
    PG-25 16~21 30 30~30.3 11 34 35
    PG-25S 13~18 30 30~30.3 11 34 35
    PG-29 18~25 37 37~37.3 12 40 42
    PG-29S 13~20 37 37~37.3 12 40 42
    PG-36 22~32 47 47~47.3 14 48 52
    PG-36S 20~26 47 47~47.3 14 48 52
    PG-42 32~38 54 54~54.3 14 49 60
    PG-42S 25~31 54 54~54.3 14 49 60
    PG-48 37~44 59.3 59.3~59.6 14 50 64
    PG-48S 29~35 59.3 59.3~59.6 14 50 64
    PG-63 42~50 70 70~70.3 27 60 72


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
