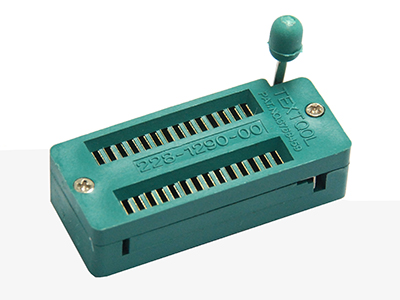

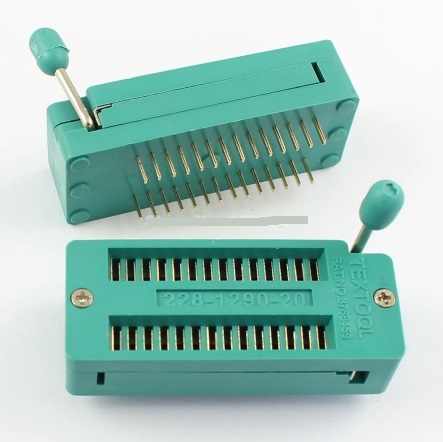

1.778mm Pitch ZIF Socket Connector
Order Information
KLS1-108Y-XX
XX-No.of 28~64pin
Materials：
Contact: copper alloy.
Insulator: Tthermoplastic
1. Electrical Specifications：
Contact Rating:50V DC,100mA.
Contact Resistance: 50mΩ max.
Insulation Resistance: 1000M Min.
Dielectric strength: 500V DC min. for 60 seconds.
2. Mechanical and Enveronmental:
Operating Temperature: -40℃ ~ +105℃
Storage Temperature: -20℃ ~ +70℃
Operating Life:25,000 cycles
Humidity:95%RH,40℃ for 96 Hrs.
Vibration: Per MIL-STD-202F, METHOD 201A
Solderability: After flux 230℃ for 5 0 .5 Seconds,95% coverage
Soldering Heat:260 5 ℃ for 5 1 S econds |
