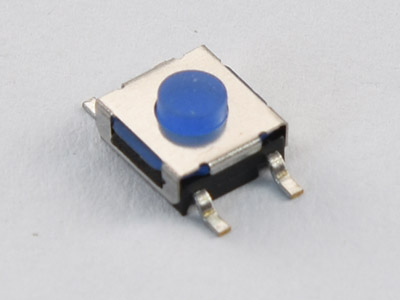

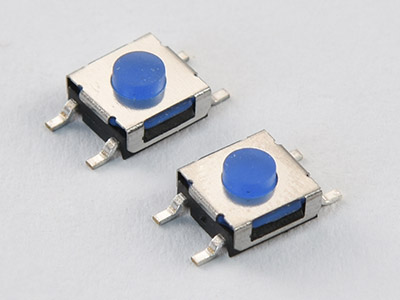

SMT Tactile Switch
Rating: 50mA 12VDC
Contact Resistance : 50mΩ max(initial)
Insulation Resistance: 100MΩ（minDC 250V）
Dielectric Strength : AC250V(50/60Hz for 1minute)
Electrically Life: 100000cycles
Environment temperature: -25℃-70℃
Operating Force: 180/250(±30gf)
Seal temperature:260℃-280℃
Color: blue

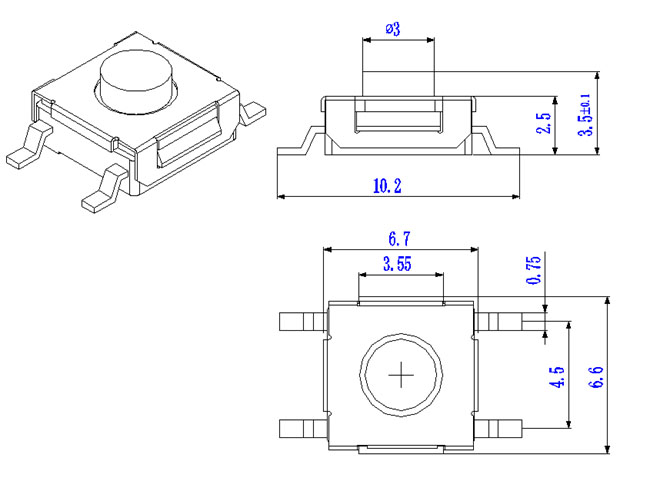

Height: H1=2.6mm H2=2.5mm H3=2.7mm H4=3.1mm H5=3.5mm H6=5.1mm |
| Part No. | Description | PCS/CTN | G.W.(KG) | CMB(m3) | Order
Qty. | Time | Order |
|
|
