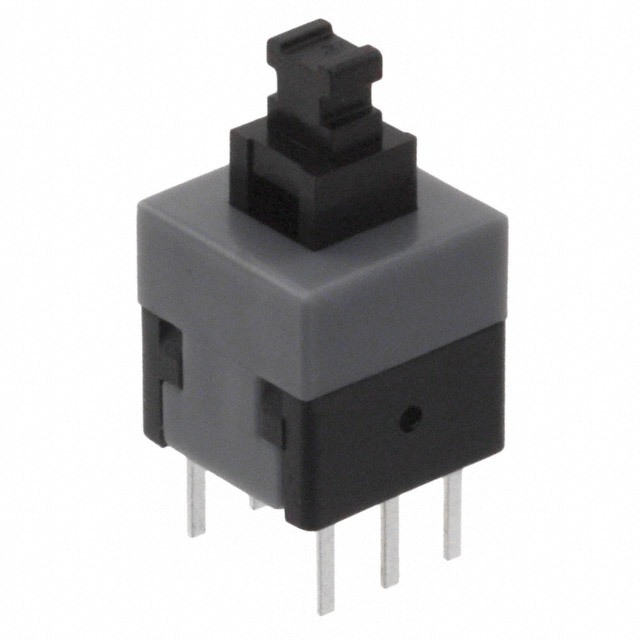

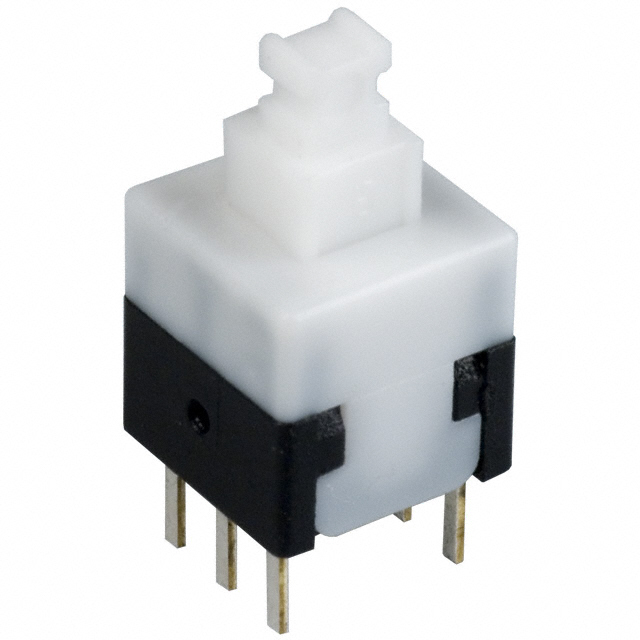

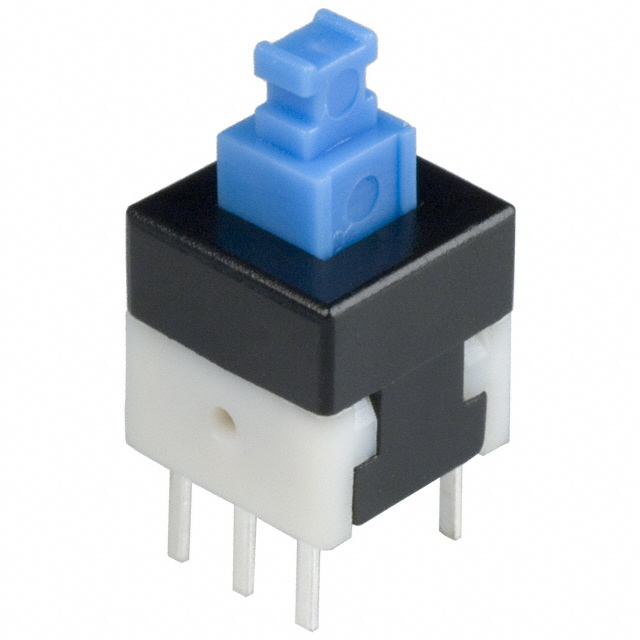

Mini Push Switch 8.0×8.0mm
KLS7-P8.0X8.0 |
All Products in Push switches |
|
|
Mini Push Switch 8.0×8.0mm
SPECIFICATION:
Rating: 0.1A 30V DC
Operating Force: 160 ± 80g
Withatand Voltage: AC 125V 1 Minute
Insulation Resistance: 100 MΩ Mim. 125V DC
Contact Resistance: 100MΩ
Operating Temperature: -40oC ~ +80oC
Mechanical Life: 100,000 Cycles
Electrical Life: 10,000 Cycles
FUNCTION:
0 = Non Lock Type
1 = With Lock Type |
Part No. | Description | PCS/CTN | G.W.(KG) | CMB(m3) | Order
Qty. | Time | Order |
|
|
