35W TO-220 Thick Film Power Resistors KLS6-RTP35 All Products in power resistors

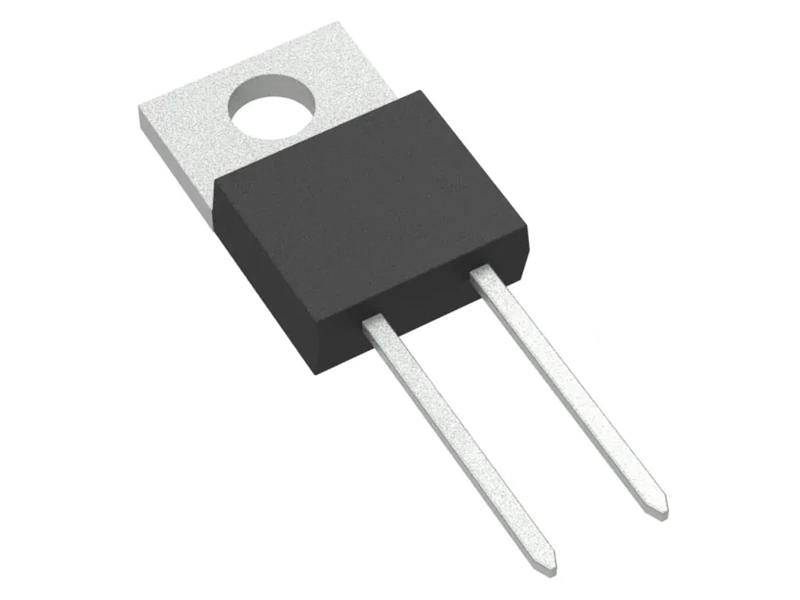

35W TO-220  Thick Film Power  Resistors


  Product Images
35W TO-220  Thick Film Power  Resistors


  Product Information
Order Information:

L-

KLS6-

RTP

35-

10R0

-J

0

D

G

RoHS



Thick

Power (W)

Resistance (Ω)

Tolerance(%)

Case

Package

TCR (PPM/)





Film

35W

0R20

0.2Ω

F

±1%

0

TO-220

D

Tube

0

No Specified





Power



1R00

1Ω

J

±5%









E

±100





Resistors



10R0

10Ω

K

±10%









F

±200









100R

100Ω













G

±300









1KR0

1000Ω


















High power resistor, thick film with packaged TO220. applicaions are for switching power supply and snubbers circuit, automated machine controller, RF power amplifier, low energy pulse loading , UPS, voltage regulation ,bleeder resistor.

 Features :

n35 watts at 25°C case temperature heat sink mounted.
nTO-220 style power package.
nSingle screw mounting to heat sink.
nMolded case for protection and easy to mount.
nElectrically isolated case.
nNon-Inductive design.
nProducts with Pb-free Terminations and RoHS compliant.

Applications :

nSwitching Power Supplies
nLow Energy Pulse Loading
nSnubbers Circuits
nUPS
nAutomated Machine Controller
nVoltage Regulation
nRF Power Amplifiers

Electrical Characteristics SpecificationsDerating Curve:

nResistance Range: 0.2Ω – 130KΩ

nOperating Voltage: 350V Max.

nDielectric Strength: 1800VAC

nInsulation Resistance: 10GΩ min.

nOperating Temperature: -55°C to +125°C



Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
