MMCX Cable Connector (Plug,Male,50Ω) KLS1-MMCX006 All Products in MMCX connectors

MMCX Cable Connector (Plug,Male,50Ω)


  Product Images

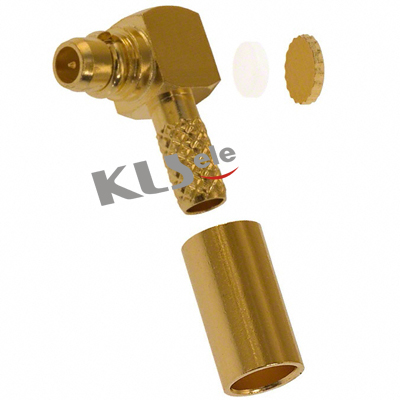

MMCX Cable Connector (Plug,Male,50Ω)


  Product Information

MMCX Cable Connector With  Plug Male Right Type  (Cable Group:RG-316, RG-174,RG-188,LMR-100;RG-178,RG-196)

Electrical Specifications

Impedance:50 Ω
Frequency Range:DC - 6 GHz
VSWR:
1.15 max. @ DC - 4 GHz
1.40 max. @ 4 - 6 GHz
RF-Leakage:
60 dB minimum @ 1 GHz (flexible cable)
70 dB minimum @ 1 GHz (semi-rigid cable)
Voltage Rating (at sea level)  :≤ 170 Vrms
Contact Resistance:
center contact: ≤ 10 mΩ
outer contact: ≤ 5 mΩ
Insulation Resistance:1,000 MΩ minimum
Dielectric Withstanding Voltage:500 Vrms (at sea level)

Mechanical
Mating:Snap-on coupling
Contact Captivation:2.3 lbs
Engagement Force:≤ 3.4 lbs (15N)
Disengagement Force:≥ 1.4 lbs (6N)
Durability (matings):500 cycles Min.
Temperature Range:-55°C to +155°C

Material
Body and Outer Contacts :Brass, nickel or gold plated
Male Contact :Brass, gold plated
Female Contact :Beryllium copper or phosphor bronze, gold plated
Crimp Ferrule:Copper or brass, nickel plated
Insulator:LCP, PTFE or PFA


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-MMCX006-LMR-100MMCX Cable Connector,Plug Male,Right Type,50 Ω,6GHz,Gold Plating,LMR-100 Cable.
KLS1-MMCX006-RG-174MMCX Cable Connector,Plug Male,Right Type,50 Ω,6GHz,Gold Plating,RG-174 Cable.
KLS1-MMCX006-RG-178MMCX Cable Connector,Plug Male,Right Type,50 Ω,6GHz,Gold Plating,RG-178 Cable.
KLS1-MMCX006-RG-188MMCX Cable Connector,Plug Male,Right Type,50 Ω,6GHz,Gold Plating,RG-188 Cable.
KLS1-MMCX006-RG-196MMCX Cable Connector,Plug Male,Right Type,50 Ω,6GHz,Gold Plating,RG-196 Cable.
KLS1-MMCX006-RG-316MMCX Cable Connector,Plug Male,Right Type,50 Ω,6GHz,Gold Plating,RG-316 Cable.
