IEC standard AC pile end charging socket KLS15-IEC06 All Products in EV charging connectors

IEC standard AC pile end charging socket


  Product Images

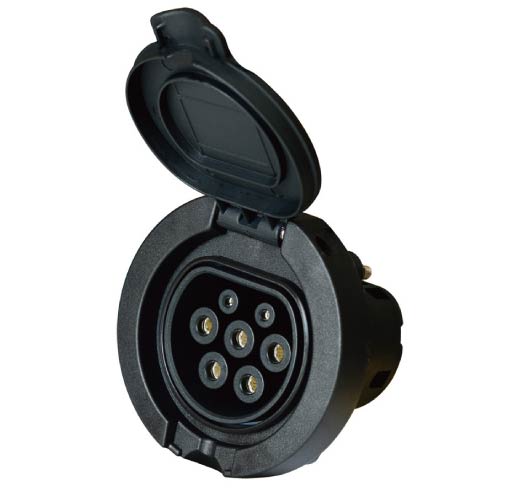

IEC standard AC pile end charging socket


  Product Information
ITEM Installation position Connector Standard Rated current Rated Voltage Cable specification
KLS15-IEC06-E16 Charging pile JACK IEC 62196-2  16A 250V 3*2.5mm2+2*0.5mm2
KLS15-IEC06-D16 Charging pile JACK IEC 62196-2  16A 415V 5*2.5mm2+2*0.5mm2
KLS15-IEC06-E32 Charging pile JACK IEC 62196-2  32A 250V 3*6mm2+2*0.5mm2
KLS15-IEC06-D32 Charging pile JACK IEC 62196-2  32A 415V 5*6mm2+2*0.5mm2
KLS15-IEC06-E63 Charging pile JACK IEC 62196-  63A 250V 3*13.3mm2+2*0.75mm2
KLS15-IEC06-D63 Charging pile JACK IEC 62196- 63A 415V 5*13.3mm2+2*0.75mm2

Features:

1. Meet 62196-2 IEC 2010 SHEET 2-IIa standard

2. Nice appearance,up flip protection ,support front and back installation.

3. Reliability of materials, anti-flaming, pressure-resistant, abrasion resistance, impact resistance and high oi

4. Excellent protection performance,protection grade IP44 (Working condition)


Mechanical properties

Mechanical life: No-load plug in /pull out >5000 times

Coupled insertion force: > 45N < 80N


Electrical Performance

1.Rated current:16A 32A or 63A

2.Operating Voltage :250/415V

3.Insulation resistance:>1000MΩ(DC500V)

4.Terminal temperature rise: <50K

5.Withstand voltage: 2000V

6.Contact Resistance: 0.5mΩ Max


Applied Materials

1.Case Material :Thermoplastic, flame retardant grade UL94-0

2.Contact bush: Copper alloy,silver plating


Environmental performance

Operating temperature :-30 ℃ ~+50 ° C


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
