You are here: Home > Products > Ethernet Connectors > Modular plugs
Modular Plug Shield RJ9/RJ10/RJ22 KLS12-RJ11B-4P All Products in Modular plugs

Modular Plug Shield RJ9/RJ10/RJ22


  Product Images
Modular Plug Shield RJ9/RJ10/RJ22  Modular Plug Shield RJ9/RJ10/RJ22


  Product Information

Modular Plug Shield RJ9/RJ10/RJ22
ELECTRICAL
CURRENT RATING:1.5AMPS
VOLTAGE RATING:125VAC
WITHSTANDING VOLTAGE:AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE:100MEGOHMS MIN
CONTACT RESISTANCE:39MILLMHOS MAX
MECHANICAL
CABLE TO PLUG TENSILE STRENGTH:7.7Kg MINI
DURABILITY:750MATING CYCLES MINI
MATERIAL
HOUSING: POLYCARBONATE (PC)UL 94V-0 OR UL 94V-2
CONTACT: PHOSPHOR BRONZE,HARD GOLD PLATED OVER NICKEL
SHIELDING:0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING:3u INCH,6u INCH,15u INCH,30u INCH,50u INCH
WORKING TEMPERATURE : -40°C ~80°C

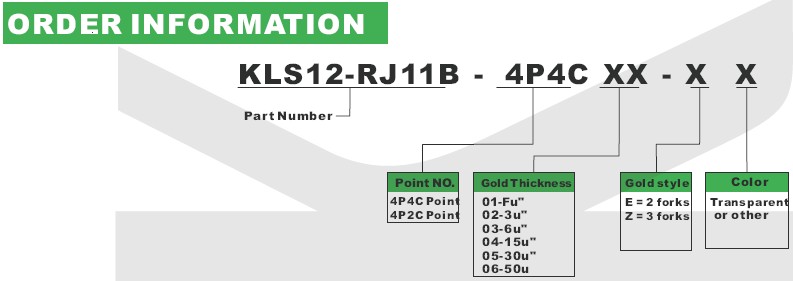

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS12-RJ11B-4P2C-01Modular Plug,Shield,4P2C (RJ9),Gold 1u.
KLS12-RJ11B-4P2C-02Modular Plug,Shield,4P2C (RJ9),Gold 3u.
KLS12-RJ11B-4P2C-05Modular Plug,Shield,4P2C (RJ9),Gold 30u.
KLS12-RJ11B-4P4C-01Modular Plug,Shield,4P4C (RJ9, RJ10, RJ22),Gold 1u.
KLS12-RJ11B-4P4C-02Modular Plug,Shield,4P4C (RJ9, RJ10, RJ22),Gold 3u.
KLS12-RJ11B-4P4C-05Modular Plug,Shield,4P4C (RJ9, RJ10, RJ22),Gold 30u.
