12mm Encoder Metal shaft without switch KLS4-EC1206 All Products in 12mm EC12 Rotary encoders

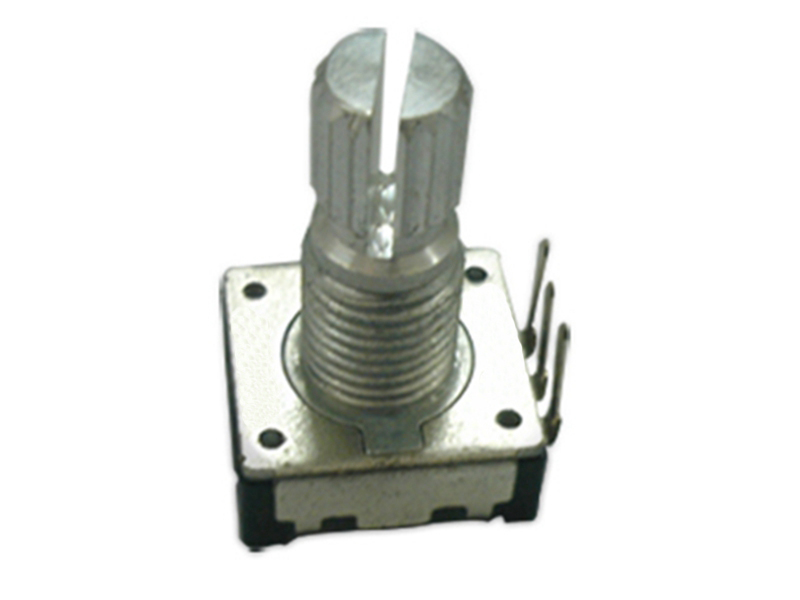

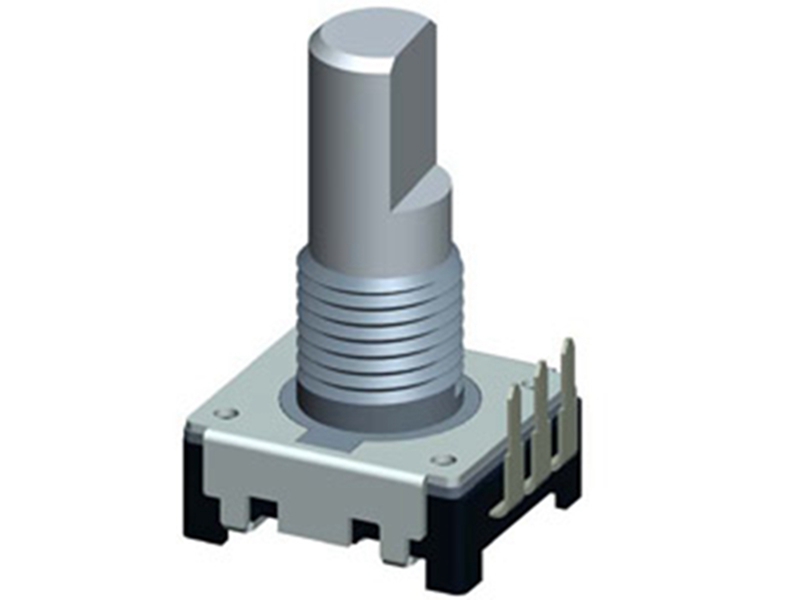

12mm Encoder Metal shaft without switch


  Product Images
12mm Encoder Metal shaft without switch 12mm Encoder Metal shaft without switch


  Product Information

Oder Information

      KLS4-EC1206 - B XX
- XXX


   EC1206:     Model Type
      B:   Bushing Hight
      XX:              Pulse and Detent Code
                          6A:   12 Pulse with 12 Detents
                          6B:   12 Pulse without Detent
                          8A:   24 Pulse with 24 Detents
                          8B:   24 Pulse without Detent
      F20:             Shaft type and Length  Code

Electrical Characteristics
Rated Power:                DC5V   5mA Max.
Output signal:               A \ B  2signals
Resolution:                  12 Pulses 360°/ 24 Pulses 360°
Phase difference:         0.08T  Min.
Sliding noise:                3mS   Max.
Contact Resistance:     1 Ω  Max.
Insulation resistance:  100MΩ Min. at DC 250V
Withstand voltage:      AC300V / 1 min

Mechanical
Total rotation angle:    360°
Rotational Torque:      1kgf.cm Max
Click Torque:               20~150 gf.cm
Push-pull Strength of Shaft:    8.0kgf Min.
Number of Detents:      12 detents Step angle:30°±2°
                                   24 detents Step angle:15°±2°
                                   Without  detents
Rotational Life:            30000±200 cycles per 100gf.cm Min.
Temp. Range:               -30 ° C ~ + 85 ° C
