Zener diodes,LL-34 & SOD-80C package Zener diodes |
 All Products in Zener diodes |
|
 |
| Part Number |
Package |
P D (W) |
VZ@IZT (V) |
IZT (mA) |
ZZT@IZT (Ω) |
ZZK@IZK (Ω) |
IZK (mA) |
IR (uA) |
VR (V) |
| ZMM55-C10 |
LL-34 & SOD-80C |
0.5 |
9.4-10.6 |
5 |
15 |
70 |
1 |
0.1 |
7.5 |
| ZMM55-C11 |
LL-34 & SOD-80C |
0.5 |
10.4-11.6 |
5 |
20 |
70 |
1 |
0.1 |
8.2 |

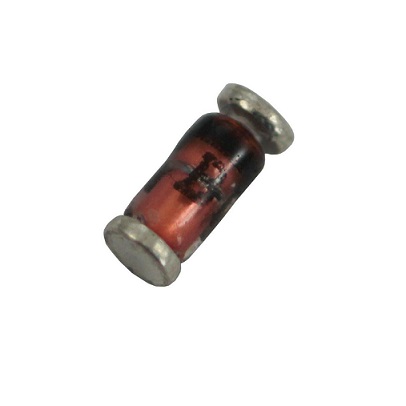

| ZMM55-C12 |
LL-34 & SOD-80C |
0.5 |
11.4-12.7 |
5 |
20 |
90 |
1 |
0.1 |
9.1 |
| ZMM55-C15 |
LL-34 & SOD-80C |
0.5 |
13.8-15.6 |
5 |
30 |
110 |
1 |
0.1 |
11 |
| ZMM55-C16 |
LL-34 & SOD-80C |
0.5 |
15.3-17.1 |
5 |
40 |
170 |
1 |
0.1 |
12 |
| ZMM55-C18 |
LL-34 & SOD-80C |
0.5 |
16.9-19.1 |
5 |
50 |
170 |
1 |
0.1 |
13 |
| ZMM55-C20 |
LL-34 & SOD-80C |
0.5 |
18.8-21.2 |
5 |
55 |
220 |
1 |
0.1 |
15 |
| ZMM55-C22 |
LL-34 & SOD-80C |
0.5 |
20.8-23.3 |
5 |
55 |
220 |
1 |
0.1 |
16 |

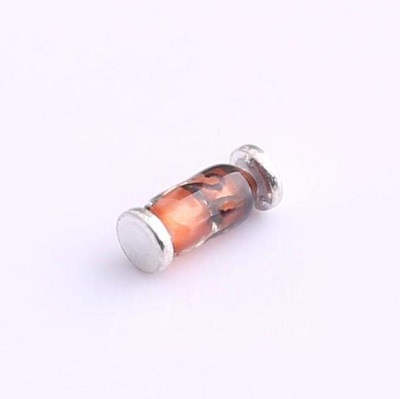

| ZMM55-C24 |
LL-34 & SOD-80C |
0.5 |
22.8-25.6 |
5 |
80 |
220 |
1 |
0.1 |
18 |
| ZMM55-C27 |
LL-34 & SOD-80C |
0.5 |
25.1-28.9 |
5 |
80 |
220 |
1 |
0.1 |
20 |
| ZMM55-C30 |
LL-34 & SOD-80C |
0.5 |
28-32 |
5 |
80 |
220 |
1 |
0.1 |
22 |
| ZMM55-C33 |
LL-34 & SOD-80C |
0.5 |
31-35 |
5 |
80 |
220 |
1 |
0.1 |
24 |
| ZMM55-C36 |
LL-34 & SOD-80C |
0.5 |
34-38 |
5 |
80 |
220 |
1 |
0.1 |
27 |

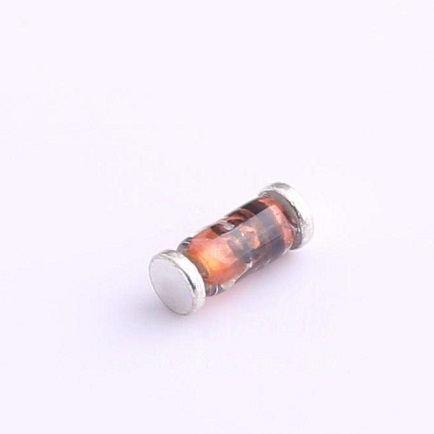

| ZMM55-C39 |
LL-34 & SOD-80C |
0.5 |
37-41 |
2.5 |
90 |
500 |
0.5 |
0.1 |
30 |
| ZMM55-C43 |
LL-34 & SOD-80C |
0.5 |
40-46 |
2.5 |
90 |
600 |
0.5 |
0.1 |
33 |
| ZMM55-C47 |
LL-34 & SOD-80C |
0.5 |
44-50 |
2.5 |
110 |
700 |
0.5 |
0.1 |
36 |
| ZMM55-C51 |
LL-34 & SOD-80C |
0.5 |
48-54 |
2.5 |
125 |
700 |
0.5 |
0.1 |
39 |

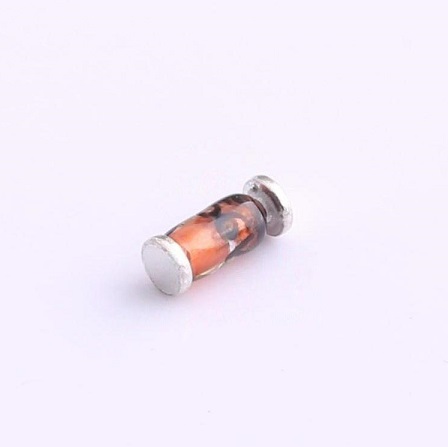

| ZMM55-C56 |
LL-34 & SOD-80C |
0.5 |
52-60 |
2.5 |
135 |
1000 |
0.5 |
0.1 |
43 |
| ZMM55-C62 |
LL-34 & SOD-80C |
0.5 |
58-66 |
2.5 |
150 |
1000 |
0.5 |
0.1 |
47 |
| ZMM55-C68 |
LL-34 & SOD-80C |
0.5 |
64-72 |
2.5 |
200 |
1000 |
0.5 |
0.1 |
51 |
| ZMM55-C75 |
LL-34 & SOD-80C |
0.5 |
70-79 |
2.5 |
250 |
1500 |
0.5 |
0.1 |
56 |
| ZMM55-C2V0 |
LL-34 & SOD-80C |
0.5 |
1.9-2.1 |
5 |
100 |
600 |
1 |
150 |
1 |
| ZMM55-C2V2 |
LL-34 & SOD-80C |
0.5 |
2.09-2.31 |
5 |
85 |
600 |
1 |
50 |
1 |
| ZMM55-C2V4 |
LL-34 & SOD-80C |
0.5 |
2.28-2.56 |
5 |
85 |
600 |
1 |
50 |
1 |
| ZMM55-C2V7 |
LL-34 & SOD-80C |
0.5 |
2.5-2.9 |
5 |
85 |
600 |
1 |
10 |
1 |
| ZMM55-C3V0 |
LL-34 & SOD-80C |
0.5 |
2.8-3.2 |
5 |
85 |
600 |
1 |
4 |
1 |
| ZMM55-C3V3 |
LL-34 & SOD-80C |
0.5 |
3.1-3.5 |
5 |
85 |
600 |
1 |
2 |
1 |
| ZMM55-C3V6 |
LL-34 & SOD-80C |
0.5 |
3.4-3.8 |
5 |
85 |
600 |
1 |
2 |
1 |
| ZMM55-C3V9 |
LL-34 & SOD-80C |
0.5 |
3.7-4.1 |
5 |
85 |
600 |
1 |
2 |
1 |
| ZMM55-C4V3 |
LL-34 & SOD-80C |
0.5 |
4.0-4.6 |
5 |
75 |
600 |
1 |
1 |
1 |
| ZMM55-C4V7 |
LL-34 & SOD-80C |
0.5 |
4.4-5.0 |
5 |
60 |
600 |
1 |
0.5 |
1 |
| ZMM55-C5V1 |
LL-34 & SOD-80C |
0.5 |
4.8-5.4 |
5 |
35 |
550 |
1 |
0.1 |
1 |
| ZMM55-C5V6 |
LL-34 & SOD-80C |
0.5 |
5.2-6.0 |
5 |
25 |
450 |
1 |
0.1 |
1 |
| ZMM55-C6V2 |
LL-34 & SOD-80C |
0.5 |
5.8-6.0 |
5 |
10 |
200 |
1 |
0.1 |
2 |
| ZMM55-C6V8 |
LL-34 & SOD-80C |
0.5 |
6.4-7.2 |
5 |
8 |
150 |
1 |
0.1 |
3 |
| ZMM55-C7V5 |
LL-34 & SOD-80C |
0.5 |
7.0-7.9 |
5 |
7 |
50 |
1 |
0.1 |
5 |
| ZMM55-C8V2 |
LL-34 & SOD-80C |
0.5 |
7.7-8.7 |
5 |
7 |
50 |
1 |
0.1 |
6.2 |
| ZMM55-C9V1 |
LL-34 & SOD-80C |
0.5 |
8.5-9.6 |
5 |
10 |
50 |
1 |
0.1 |
6.8 |
Operating Temp.Range,TJ(℃) : -55~+175 |
