You are here: Home > Products > Discrete Semiconductors > High efficient & Ultra fast recovery rectifier diodes
SMD High efficient ultra fast rectifier diodes 2A 3A 5A SMD High efficient ultra fast rectifier diodes All Products in High efficient & Ultra fast recovery rectifier diodes

SMD High efficient ultra fast rectifier diodes 2A 3A 5A


  Product Images
SMD High efficient ultra fast rectifier diodes 2A 3A 5A SMD High efficient ultra fast rectifier diodes 2A 3A 5A SMD High efficient ultra fast rectifier diodes 2A 3A 5A SMD High efficient ultra fast rectifier diodes 2A 3A 5A

SMD High efficient ultra fast rectifier diodes 2A 3A 5A SMD High efficient ultra fast rectifier diodes 2A 3A 5A SMD High efficient ultra fast rectifier diodes 2A 3A 5A


  Product Information

Part No. Package Outlines VRRM(V) max. Max.AverRect.Current IO(A) Peak Fwd.Surge Current IFSM(A) Max. Forward Voltage Drop VF(V) Max. Forward Voltage Drop IF(A) Max. Reverse Current IR (Ua) Max. Reverse Current VR (V) trr(ns) max Operating
Temp.Range,TJ(℃)
US2MA SMA 1000 2 60 1.85 2 5 1000 75 -55~+150
US2KA SMA 800 2 60 1.85 2 5 800 75 -55~+150
US2JA SMA 600 2 60 1.85 2 5 600 75 -55~+150
US2GA SMA 400 2 60 1.3 2 5 400 50 -55~+150
US2EA SMA 300 2 60 1.3 2 5 300 50 -55~+150
US2DA SMA 200 2 60 1 2 5 200 50 -55~+150
US2BA SMA 100 2 60 1 2 5 100 50 -55~+150
US2AA SMA 50 2 60 1 2 5 50 50 -55~+150
US2MB SMB 1000 2 60 1.85 2 5 1000 75 -55~+150
US2KB SMB 800 2 60 1.85 2 5 800 75 -55~+150
US2JB SMB 600 2 60 1.85 2 5 600 75 -55~+150
US2GB SMB 400 2 60 1.3 2 5 400 50 -55~+150
US2DB SMB 200 2 60 1 2 5 200 50 -55~+150
US2EB SMB 300 2 60 1.3 2 5 300 50 -55~+150
US2BB SMB 100 2 60 1 2 5 100 50 -55~+150
US2AB SMB 50 2 60 1 2 5 50 50 -55~+150
US2MBF SMBF 1000 2 60 1.85 2 5 1000 75 -55~+150
US2KBF SMBF 800 2 60 1.85 2 5 800 75 -55~+150
US2JBF SMBF 600 2 60 1.85 2 5 600 75 -55~+150
US2GBF SMBF 400 2 60 1.3 2 5 400 50 -55~+150
US2EBF SMBF 300 2 60 1.3 2 5 300 50 -55~+150
US2DBF SMBF 200 2 60 1 2 5 200 50 -55~+150
US2BBF SMBF 100 2 60 1 2 5 100 50 -55~+150
US2ABF SMBF 50 2 60 1 2 5 50 50 -55~+150

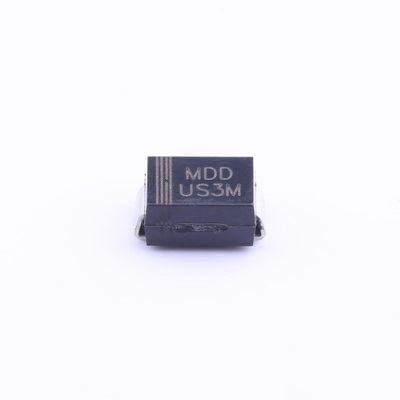

US3MB SMB 1000 3 100 1.85 3 5 1000 75 -55~+150
US3KB SMB 800 3 100 1.85 3 5 800 75 -55~+150
US3JB SMB 600 3 100 1.85 3 5 600 75 -55~+150

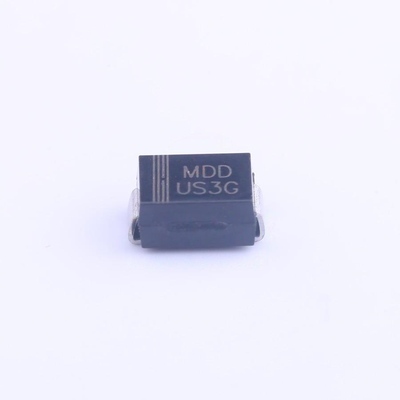

US3GB SMB 400 3 100 1.3 3 5 400 50 -55~+150
US3EB SMB 300 3 100 1.3 3 5 300 50 -55~+150

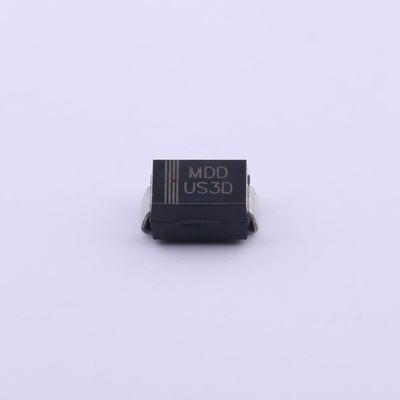

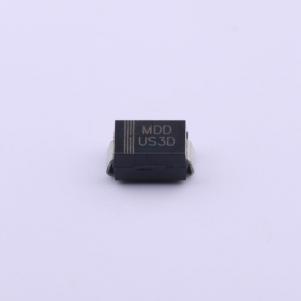

US3DB SMB 200 3 100 1 3 5 200 50 -55~+150
US3BB SMB 100 3 100 1 3 5 100 50 -55~+150
US3AB SMB 　 3 100 1 3 5 50 50 -55~+150
US3MC SMC 1000 3 100 1.85 3 5 1000 75 -55~+150
US3KC SMC 800 3 100 1.85 3 5 800 75 -55~+150

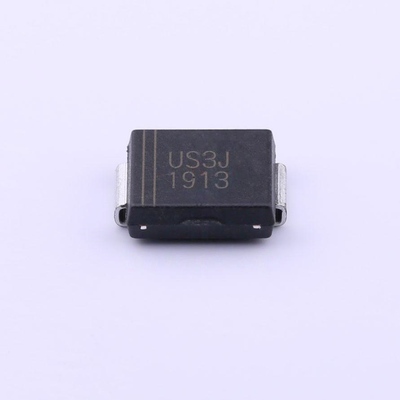

US3JC SMC 600 3 100 1.85 3 5 600 75 -55~+150
US3GC SMC 400 3 100 1.3 3 5 400 50 -55~+150
US3EC SMC 300 3 100 1.3 3 5 300 50 -55~+150
US3DC SMC 200 3 100 1 3 5 200 50 -55~+150
US3BC SMC 100 3 100 1 3 5 100 50 -55~+150
US3AC SMC 50 3 100 1 3 5 50 50 -55~+150
US3MBF SMBF 1000 3 100 1.85 3 5 1000 75 -55~+150
US3KBF SMBF 800 3 100 1.85 3 5 800 75 -55~+150
US3JBF SMBF 600 3 100 1.85 3 5 600 75 -55~+150
US3GBF SMBF 400 3 100 1.3 3 5 400 50 -55~+150
US3EBF SMBF 300 3 100 1.3 3 5 300 50 -55~+150
US3DBF SMBF 200 3 100 1 3 5 200 50 -55~+150
US3BBF SMBF 100 3 100 1 3 5 100 50 -55~+150
US3ABF SMBF 50 3 100 1 3 5 50 50 -55~+150
US5KC SMC 800 5 120 1.85 5 5 800 75 -55~+150
US5JC SMC 600 5 120 1.85 5 5 600 75 -55~+150

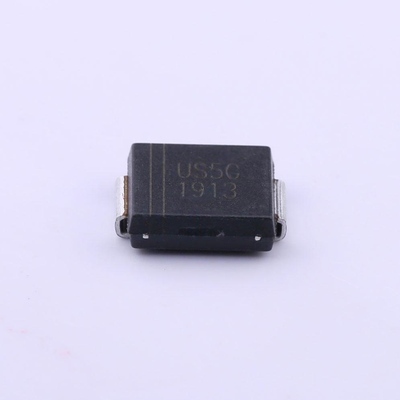

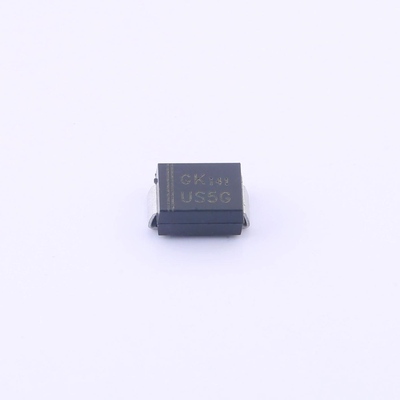

US5GC SMC 400 5 120 1.3 5 5 400 50 -55~+150
US5EC SMC 300 5 120 1.3 5 5 300 50 -55~+150

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
