Axial Thermal Fuse KLS5-103-BF157 All Products in Thermal fuses

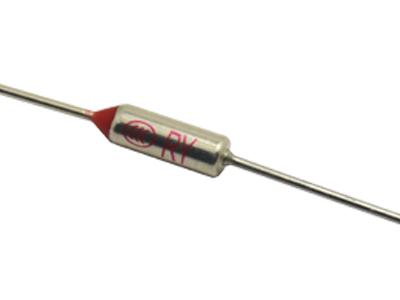

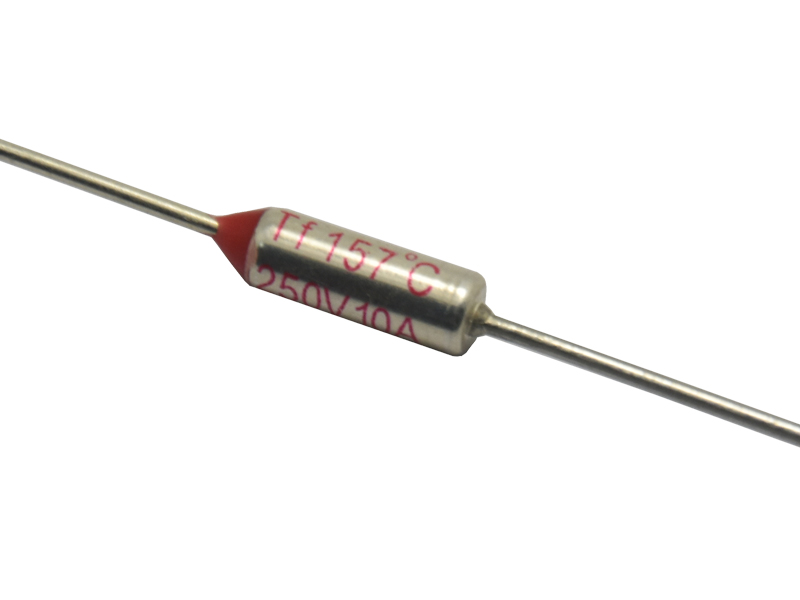

Axial Thermal Fuse


  Product Images
Axial Thermal Fuse Axial Thermal Fuse


  Product Information
Axial Thermal Fuse

Order Information
KLS5-103-BF73
103 - Steel Type Thermal Fuse Series
BF73 - Rated Functioning Temp.

Electrical:

3.1 Rated Functioning Temperature: 157 +0℃ -10℃
3.2 Rated Voltage:250V
3.3 Rated Current: 10A
3.4 Normal Electric Strength: Between Housing
(Cover the silicone insulation tube)and Lead,
Dielectric Strength should be AC 50Hz, 1500V, last
1 minute, without blink and breakdown.
3.5 Insulation Resistance: Between Housing(Cover the
silicone insulation tube)and Lead, Insulation Resistance > 2MΩ.
3.6 Contact Insulation: Contact Insulation between lead ≤0.028Ω
3.7 Disconnection Insulation Resistance: Lead to lead in
disconnection, Insulation Resistance ≥0.2MΩ
3.8 Leakage Current: ≤0.2mA

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS5-103-BF104Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 104℃.
KLS5-103-BF113Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 113℃.
KLS5-103-BF117Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 117℃.
KLS5-103-BF121Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 121℃.
KLS5-103-BF133Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 133℃.
KLS5-103-BF142Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 142℃.
KLS5-103-BF157Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 157℃.
KLS5-103-BF172Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 172℃.
KLS5-103-BF184Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 184℃.
KLS5-103-BF192Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 192℃.
KLS5-103-BF216Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 216℃.
KLS5-103-BF229Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 229℃.
KLS5-103-BF240Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 240℃.
KLS5-103-BF73Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 73℃.
KLS5-103-BF77Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 77℃.
KLS5-103-BF84Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 84℃.
KLS5-103-BF94Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 94℃.
KLS5-103-BF99Axial leaded Thermal Fuse With Steel Type,Rating Voltage 250VAC,Rating Current 10A,Rated Functioning Temp 99℃.
