Radial leaded PTC Resettable Fuse 30V KLS5-JK30 All Products in DIP PTC resettable fuses

Radial leaded PTC Resettable Fuse 30V


  Product Images
Radial leaded PTC Resettable Fuse 30V


  Product Information

Radial leaded PTC Resettable Fuse 30V

KLS5-JK30 series of Polymer PTC self-resettable fuse (Polymer PTC Restoring Fuse) is a new-generation of overcurrent protection product, its function corresponds to the self-resettable and repeatedly-usable fuse, being used to protect circuit from damage by high current and having such superiorities as automatic reset, high security, short restoring time, fine performance of low resistance to strong current as well as little volume.  they can be used in communication exchanger, main distributing frame, computer mouse, keyboard, micromotor, transformer, audio, battery and other electrical equipment as well as circuits, to play the role overcurrent protection.

Cured,flame retardant epoxy polymer insulating
Material meets UL94 V-0 requirement
Available in lead-free version
Agency Recognition: UL SGS

Electrical characteristics(25℃)

Model/PDF

Vmax
(V)

Imax
(A)

Ih
(A)

Rmax
(Ω)

Rmin
(Ω)

Figure type
Pd(W)

Maximum Contour Size(mm)

A
B
C
D
JK30-090
30
40
0.90
0.22
0.130
1
0.60
7.40
12.2
3.1
5.10
JK30-110
30
40
1.10
0.20
0.090
1
0.70
7.40
12.2
3.1
5.10
JK30-135
30
40
1.35
0.16
0.070
1
0.80
9.20
13.5
3.1
5.10
JK30-160
30
40
1.60
0.14
0.060
1
0.90
9.20
15.2
3.1
5.10
JK30-185
30
40
1.85
0.12
0.050
1
1.00
9.20
15.2
3.1
5.10
JK30-200
30
40
2.00
0.10
0.040
1
1.20
15.2
15.2
3.1
5.10
JK30-250
30
40
2.50
0.08
0.030
1
1.20
13.2
18.3
3.1
5.10
JK30-300
30
40
3.00
0.07
0.030
2
2.00
13.2
17.3
3.1
5.10
JK30-400
30
40
4.00
0.06
0.010
2
2.50
14.0
20.1
3.1
5.10
JK30-500
30
40
5.00
0.05
0.010
2
3.00
14.0
20.1
3.1
10.2
JK30-600
30
40
6.00
0.04
0.005
2
3.50
17.2
24.9
3.1
10.2
JK30-700
30
40
7.00
0.03
0.005
2
3.80
17.2
24.9
3.1
10.2
JK30-800
30
40
8.00
0.025
0.005
2
4.00
23.5
29.2
3.1
10.2
JK30-900
30
40
9.00
0.02
0.005
2
4.20
23.5
29.2
3.1
10.2

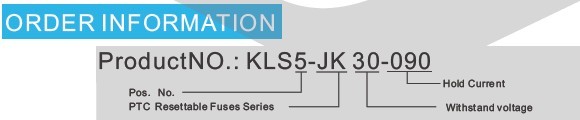

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS5-JK30-090Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 0.9A.
KLS5-JK30-110Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 1.1A.
KLS5-JK30-135Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 1.35A.
KLS5-JK30-160Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 1.6A.
KLS5-JK30-185Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 1.85A.
KLS5-JK30-200Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 2.0A.
KLS5-JK30-250Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 2.5A.
KLS5-JK30-300Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 3.0A.
KLS5-JK30-400Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 4.0A.
KLS5-JK30-500Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 5.0A.
KLS5-JK30-600Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 6.0A.
KLS5-JK30-700Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 7.0A.
KLS5-JK30-800Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 8.0A.
KLS5-JK30-900Radial leaded PTC Resettable Fuse,Rating Voltage 30V,Rating Current 40A,At 25℃ IH 9.0A.
