Order Information
L-KLS1-RFCA11-OD1.13-L300 / X

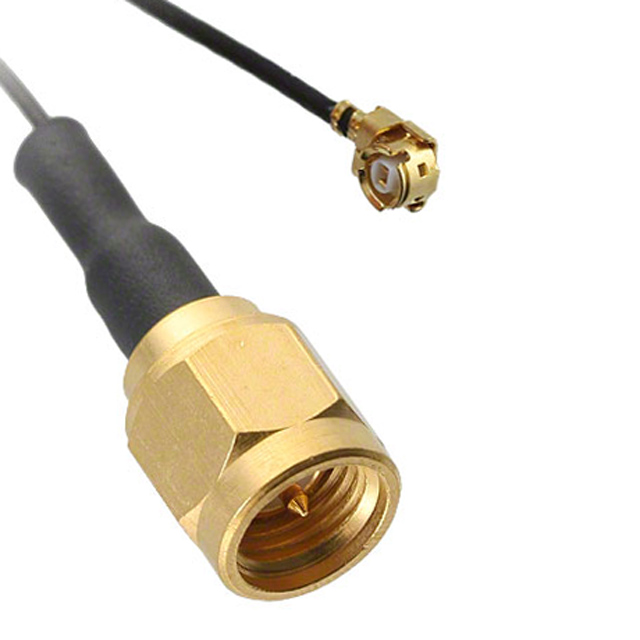

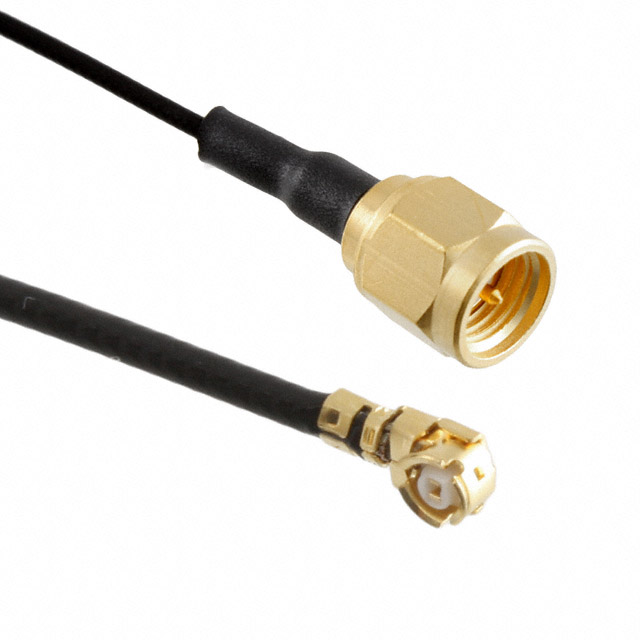

RFCA11: Series: I-PEX to SMA plug, Male

OD1.13: Cable: OD0.81- 0.81mm RF Cable
                          OD1.13- 1.13mm RF Cable
                          OD1.32- 1.32mm RF Cable
                          OD1.37- 1.37mm RF Cable
                          RG178- RG178 RF Cable
                          RG316- RG316 RF Cable
L300: Lengs: L300=300mm
X: Wire Color: Not-Black    G-Gray    BR-Brawn

Material:
SMA-J: Brass,Gold plated
Heat shrink tubing: PVC, Black
Wire: Φ1.37 Black
IPEX-1: Brass,gold-plated

Electrical:
Frequency Range: 0-6G
Impedance: 50 OHM
Vswr: 1.5 MAX
Conduction Impedence: 0.5 OHM
Insulation Resistance: 5000MΩ MIN
Max power: 10 W
Operating Voltage: 335V MAX (RMS)
Mechanical Durability: 500 times
Withstand Voltage: 1000Vrms (at sea level)
Temperature: -35℃ ~ +80℃
