Modular Plug CAT6 KLS12-MP04-CAT6-8P All Products in Modular plugs

Modular Plug CAT6


  Product Images
Modular Plug CAT6 Modular Plug CAT6


  Product Information

Modular Plug  CAT6
MATERIAL

1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0ABS、PBT、NYLON
2. HOUSING COLOR : BLACK、GRAY、IVORY、WHITE OR OTHERS
3. CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4. PLATING : GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5. SHIELD : 0.23 THICKNESS BRASS WITH NICKEL PLATED

ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE : 1000 VAC RMS. 50Hz 1 MINUTE

MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER : 1 LB MIN

ENVIRONMENTAL
1. STORAGE :-40℃~80℃

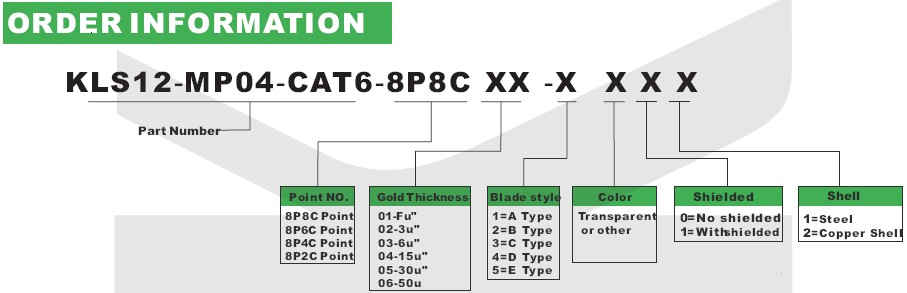

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS12-MP04-CAT6-8P8C-01Modular Plug,Shield,CAT6 Ratings,8P8C (RJ45),Gold 1u.
KLS12-MP04-CAT6-8P8C-02Modular Plug,Shield,CAT6 Ratings,8P8C (RJ45),Gold 3u.
KLS12-MP04-CAT6-8P8C-05Modular Plug,Shield,CAT6 Ratings,8P8C (RJ45),Gold 30u.
