Order information

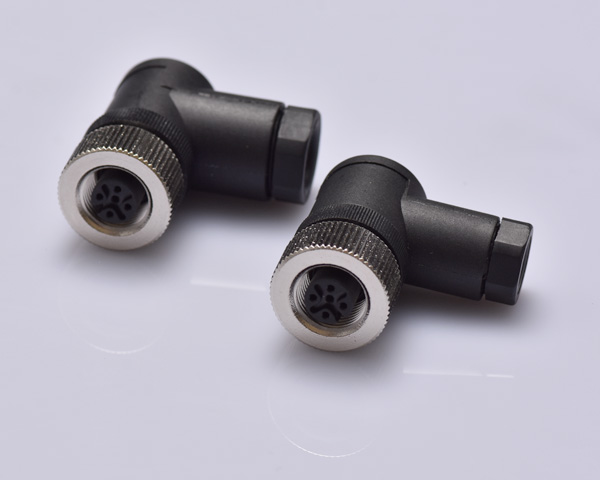

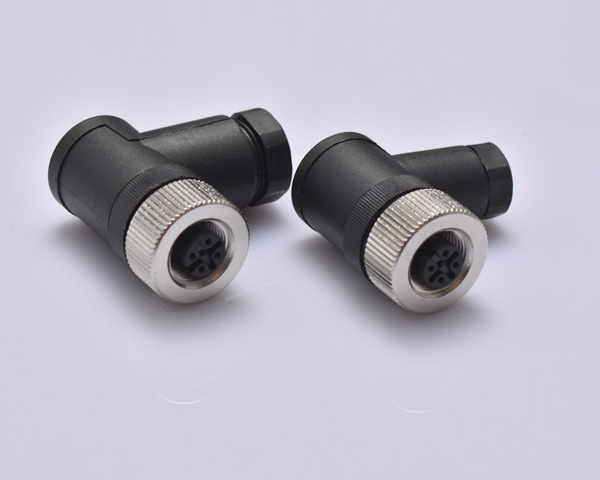

L-KLS15-M12 A-TR2 XX PG X
L: RoHS
M12: Screw type
A: A-Coding
TR2: R/A Plug Code (Female Pin)
XX: Number of Contacts (4P 5P 8P)
X: Cable outlet PG7 or PG9
Electrical & Mechanical data
IP rating:IP67
Wire gauge:24AWG/0.25mm²
Connector contacts:Brass with gold plated
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation:Right angle
Coupling nut/screw:Brass with nickel plated screw
Cable jacket material:PUR
Insert/ Housing:TPU
Overmold/ Shell:TPU
Sealing:O-ring
Temperature Range:-25°C ~ + 80°C
|
4Pin |
5Pin |
8Pin |
Rated current |
4A |
4A |
2A |
Rated voltage |
250V |
60V |
30V |
|
Part No. | Description | PCS/CTN | G.W.(KG) | CMB(m3) | Order
Qty. | Time | Order |
|
|
