IP67 M12 A-coding R/A Plug Male Connector Automation technology KLS15-M12A-TR1 All Products in M12 Waterproof Connectors IP67

IP67 M12 A-coding R/A Plug Male Connector
Automation technology


  Product Images

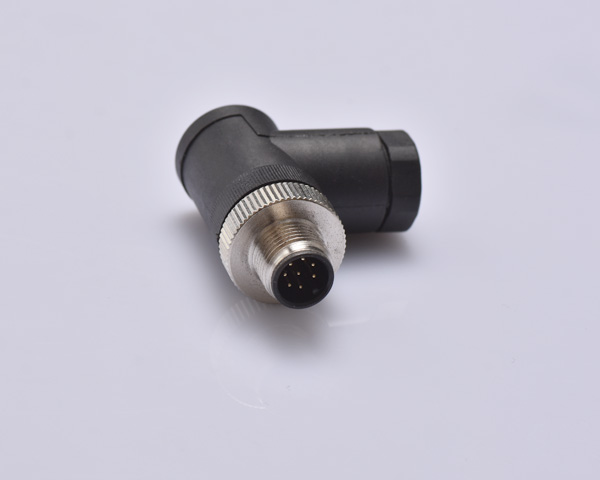

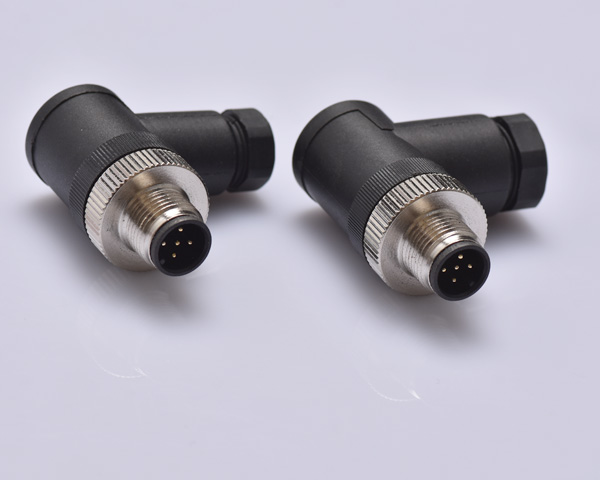

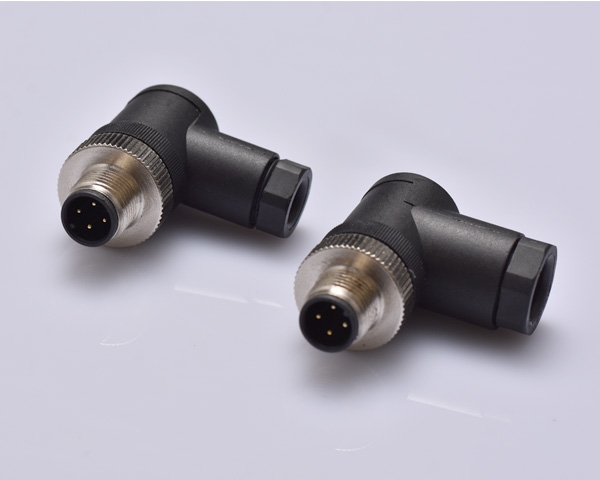

IP67 M12 A-coding R/A Plug Male Connector
Automation technology IP67 M12 A-coding R/A Plug Male Connector
Automation technology IP67 M12 A-coding R/A Plug Male Connector
Automation technology


  Product Information

Order information
L-KLS15-M12 A-TR1   XX   PG X

L:     RoHS
M12: Screw type
A:    A-Coding
TR1:   R/A Plug Code (Male Pin)
XX:  Number of Contacts (4P 5P 8P)
X:    Cable outlet  PG7 or PG9

Electrical & Mechanical data
IP rating:IP67
Wire gauge:24AWG/0.25mm²
Connector contacts:Brass with gold plated
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation:Right angle
Coupling nut/screw:Brass with nickel plated screw
Cable jacket material:PUR
Insert/ Housing:TPU
Overmold/ Shell:TPU
Sealing:O-ring
Temperature Range:-25°C ~ + 80°C

  4Pin 5Pin 8Pin
Rated current 4A 4A 2A
Rated voltage 250V 60V 30V

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
