M20 Circular Connector ( Water proof Ip≥55 ) Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive. Order Information: (1) (2)(3) (1) M20: M20 Shell Size (2) 2: 2 pins (2,3,4,5,6,7,8,10,12,14pins) (3) F1- Plug Socket F2-Docking Plug F3- Plug Pin M1- Receptacle Pin M2- Receptacle Socket M3- Flange Receptacle Pin M4- Flange Receptacle Socket

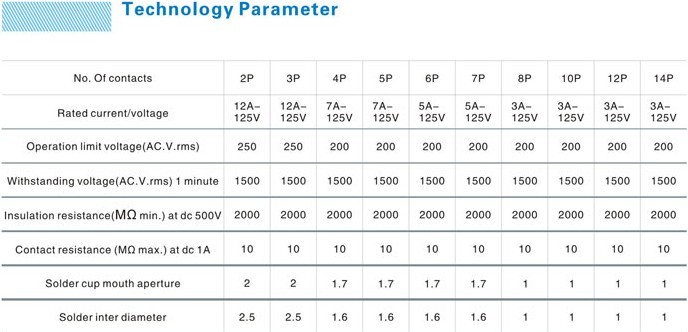

TYPE TYPE Pins Ordering Water-proof
　
Plug Socket 2 M20-2F1 IP55
3 M20 -3F1 IP55
4 M20 -4F1 IP55
Plug Socket 5 M20 -5F1 IP55
Plug Socket 6 M20 -6F1 IP55
7 M20 -7F1 IP55
8
M20 -8F1 IP55
10
M20 -10F1 IP55
12
M20 -12F1 IP55
Docking Plug 2 M20 -2F2 IP55
3 M20 -3F2 IP55
4 M20 -4F2 IP55
Docking Plug 5 M20 -5F2 IP55
Docking Plug 6 M20 -6F2 IP55
7 M20 -7F2 IP55
8
M20 -8F2 IP55
10
M20 -10F2 IP55
12
M20 -12F2 IP55
Plug Pin 2 M20 -2F3 IP55
3 M20 -3F3 IP55
4 M20 -4F3 IP55
Plug Pin 5 M20 -5F3 IP55
Plug Pin 6 M20 -6F3 IP55
7 M20 -7F3 IP55
8
M20 -8F3 IP55
10
M20 -10F3 IP55
12
M20 -12F3 IP55
Receptacle Pin 2 M20 -2M1 IP55
3 M20 -3M1 IP55
4 M20 -4M1 IP55
Receptacle Pin 5 M20 -5M1 IP55
Receptacle Pin 6 M20 -6M1 IP55
7 M20 -7M1 IP55
8
M20 -8M1 IP55
10
M20 -10M1 IP55
12
M20 -12M1 IP55
Receptacle Socket 2 M20 -2M2 IP55
3 M20 -3M2 IP55
4 M20 -4M2 IP55
Receptacle Socket 5 M20 -5M2 IP55
Receptacle Socket 6 M20 -6M2 IP55
7 M20 -7M2 IP55
8
M20 -8M2 IP55
10
M20 -10M2 IP55
12
M20 -12M2 IP55
Flange Receptacle Pin 2 M20 -2M3 IP55
3 M20 -3M3 IP55
4 M20 -4M3 IP55
Flange Receptacle Pin 5 M20 -5M3 IP55
Flange Receptacle t Pin 6 M20 -6M3 IP55
7 M20 -7M3 IP55
8
M20 -8M3 IP55
10
M20 -10M3 IP55
12
M20 -12M3 IP55
Flange Receptacle t Socket 2 M20 -2M4 IP55
3 M20 -3M4 IP55
4 M20 -4M4 IP55
Flange Receptacle t Socket 5 M20 -5M4 IP55
Flange Receptacle t Socket 6 M20 -6M4 IP55
7
M20 -7M4 IP55
8
M20 -8M4 M20 -10M4 IP55
Part No. Description PCS/CTN G.W.(KG) CMB(m3 ) Order
Qty. Time Order
