SMD A Female 9P USB 3.0 Connectors KLS1-3301 All Products in USB 3.0 connectors

SMD A Female 9P USB 3.0 Connectors


  Product Images

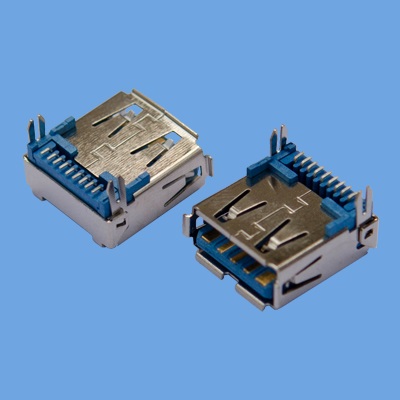

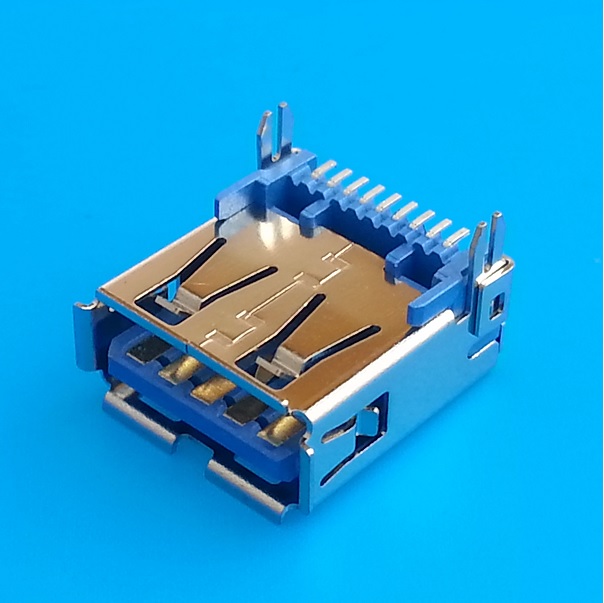

SMD A Female 9P USB 3.0 Connectors SMD A Female 9P USB 3.0 Connectors


  Product Information
Material
Housing: Thermoplastic, Glass Fiber Filled,UL94-HB
Cover: Thermoplastic, Glass Fiber Filled, UL94V-0
Contact: Copper Alloy,Gold.
Shell: Brass/Spcc,Nickel(Ni) T=0.30MM

Electrical
Contact Current Rating:     1.5 A For Pin1&Pin4
                                            0.25 A Other Contacts.
Withstanding Voltage:100vac(Rms)
Contact Resistance: 30mΩ Max(Initial) For Pin1&Pin4
                     50mΩ Max(Initial) For Other Contacts
Insulation Resistance:1000MΩ Min

Mechanical
Operating Temperature:-30°C TO +80°C.
Mating Force: 35N MAX
Unmating Force: 10N MIN.

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-3301-L-PUSB 3.0 Connector With A Type Female SMD,Blue,Box pack.
KLS1-3301-L-RUSB 3.0 Connector With A Type Female SMD,Blue,Reel pack.
