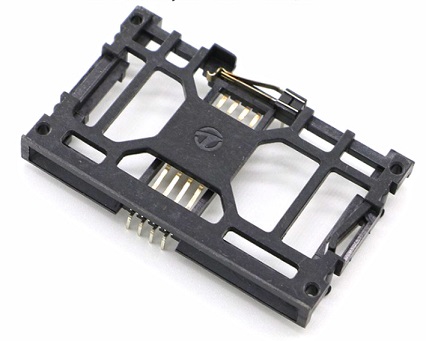

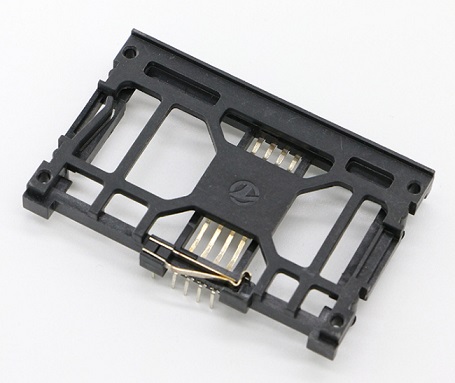

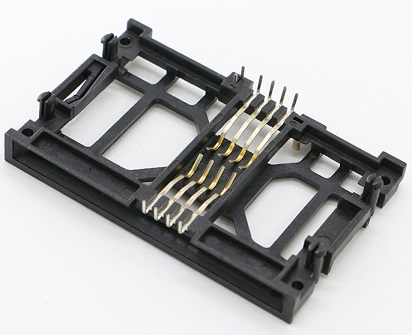

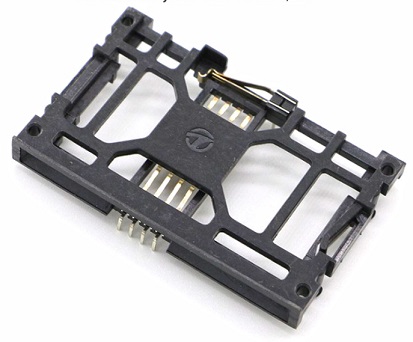

Smart Card Connector PUSH PULL,8P+2P
Electrical Characteristics
Plastic: black high temperature UL94V-0;
Terminal: copper alloy
Rated current: 1.0A max
Rated voltage: 50V AC/DC
Operating temperature: -40°C ~ +85°C
Contact resistance: 100m ohms max.
Withstand voltage: 500V AC / 1 minute
Insulation resistance: 1000M ohms min./500VDC
Durability times: 50000 times
Product temperature resistance: 260±5°C 10S
Flatness: 0.10mm MAX. |
Part No. | Description | PCS/CTN | G.W.(KG) | CMB(m3) | Order
Qty. | Time | Order |
|
|
