You are here: Home > Products > Connectors > Memory card connectors & SD card connectors & CompactFlash Connectors
Micro SD Card Connector;Hinged Type,H1.9mm KLS1-TF-002 All Products in Memory card connectors & SD card connectors & CompactFlash Connectors

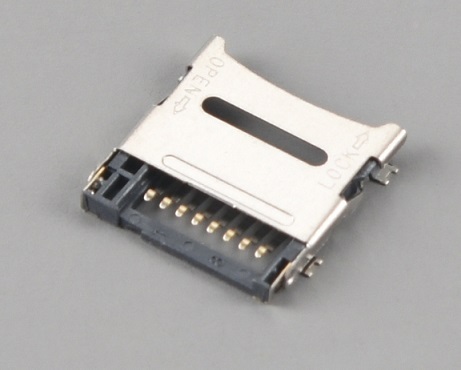

Micro SD Card Connector;Hinged Type,H1.9mm


  Product Images
Micro SD Card Connector;Hinged Type,H1.9mm Micro SD Card Connector;Hinged Type,H1.9mm


  Product Information
Micro SD Card Connector;Hinged Type,H1.9mm

Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze

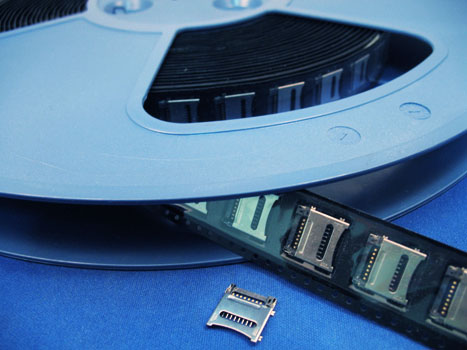

Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 100V AC
Current Rating: 0.5A  ( Max
Withstand voltage: 200V AC/1Minute
Insulation resistance: ≥1000ΜΩ
Contact resistance: ≤30MΩ
Life: ＞5000 Cycles
Operating Temperature: -45ºC~+105ºC

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-TF-002Micro SD Card Connector Hinged Type,Roll Pack.
