1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type KLS1-503 All Products in Card edge connectors & PCI Express connectors

1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type


  Product Images

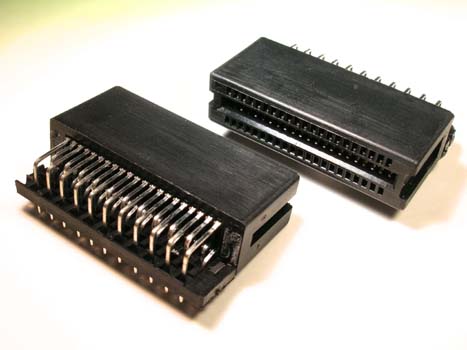

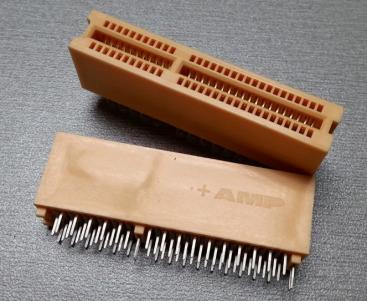

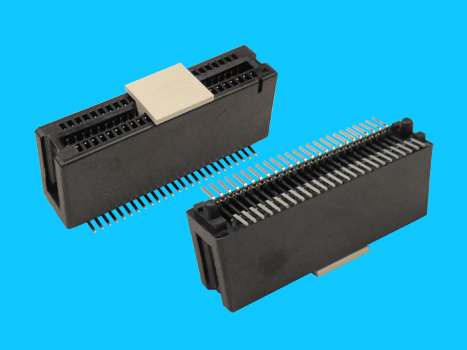

1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type 1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type 1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type 1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type

1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type 1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type 1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type


  Product Information
1.27mm Pitch Edge Card Connector Slot PCB Dip 90 180 SMT Type

Order Information
KLS1-503-XX-S-

XX-No.of 04-68pin
S-Straight pin   R-Right Angle Pin  T1-SMT Pin
NONE-Black W-White  Y-Yellow

Material:
Housing: Glass filled PBT/PA6T UL94V-0
Contacts: Brass
Plating: Contact gold and Dip Tin over Nickel
Electrical Characteristics:
Current Rating: 1 AMP
Voltage  Rating: 250 VAC
Insulator Resistance: 1000M Ohm min. at DC 500V DC
Contact Resistance: 30m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS1-503-XX-R1.27mm Pitch Edge Card Connector,04~182 Pins,Right Angle Pin,Black.
KLS1-503-XX-R-W1.27mm Pitch Edge Card Connector,04~182 Pins,Right Angle Pin,White.
KLS1-503-XX-R-Y1.27mm Pitch Edge Card Connector,04~182 Pins,Right Angle Pin,Yellow.
KLS1-503-XX-S1.27mm Pitch Edge Card Connector,04~182 Pins,Straight pin,Black.
KLS1-503-XX-S-W1.27mm Pitch Edge Card Connector,04~182 Pins,Straight pin,White.
KLS1-503-XX-S-Y1.27mm Pitch Edge Card Connector,04~182 Pins,Straight pin,Yellow.
KLS1-503-XX-T11.27mm Pitch Edge Card Connector,04~182 Pins,SMT Pin,Black.
KLS1-503-XX-T1-W1.27mm Pitch Edge Card Connector,04~182 Pins,SMT pin,White.
KLS1-503-XX-T1-Y1.27mm Pitch Edge Card Connector,04~182 Pins,SMT pin,Yellow.
KLS1-503-XX-T21.27mm Pitch Edge Card Connector,04~182 Pins,SMT Pin,Black.
KLS1-503-XX-T2-W1.27mm Pitch Edge Card Connector,04~182 Pins,SMT pin,White.
KLS1-503-XX-T2-Y1.27mm Pitch Edge Card Connector,04~182 Pins,SMT pin,Yellow.
