Pluggable Feed through terminal blocks KLS2-FT011 All Products in Feed through terminal blocks

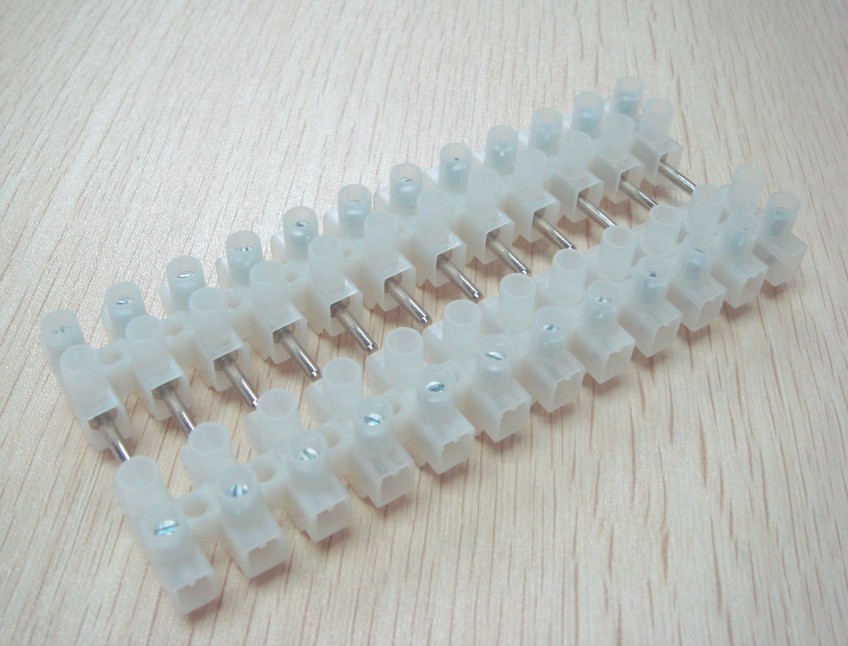

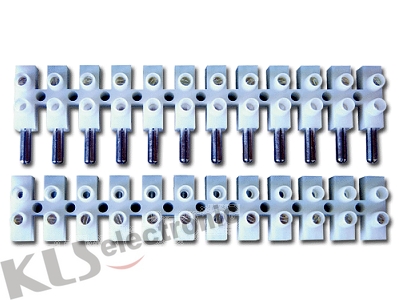

Pluggable Feed through terminal blocks


  Product Images
Pluggable Feed through terminal blocks Pluggable Feed through terminal blocks


  Product Information
Feed Through Terminal Block


Material
Base: Flat-bottom
Housing material: PA66, UL94V-2
Terminal material: Brass
Screws: Steel
Working temperature: -40 ° C ~ +105 ° C
Poles available: 2-12 Poles

Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
KLS2-FT011-08HP-02P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,02Pin,White.
KLS2-FT011-08HP-03P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,03Pin,White.
KLS2-FT011-08HP-04P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,04Pin,White.
KLS2-FT011-08HP-05P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,05Pin,White.
KLS2-FT011-08HP-06P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,06Pin,White.
KLS2-FT011-08HP-07P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,07Pin,White.
KLS2-FT011-08HP-08P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,08Pin,White.
KLS2-FT011-08HP-09P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,09Pin,White.
KLS2-FT011-08HP-10P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,10Pin,White.
KLS2-FT011-08HP-11P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,11Pin,White.
KLS2-FT011-08HP-12P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 8.2mm,Housing material: PA66,450V/17.5A,1.5mm² wire range,12Pin,White.
KLS2-FT011-10HP-02P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,02Pin,White.
KLS2-FT011-10HP-03P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,03Pin,White.
KLS2-FT011-10HP-04P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,04Pin,White.
KLS2-FT011-10HP-05P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,05Pin,White.
KLS2-FT011-10HP-06P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,06Pin,White.
KLS2-FT011-10HP-07P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,07Pin,White.
KLS2-FT011-10HP-08P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,08Pin,White.
KLS2-FT011-10HP-09P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,09Pin,White.
KLS2-FT011-10HP-10P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,10Pin,White.
KLS2-FT011-10HP-11P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,11Pin,White.
KLS2-FT011-10HP-12P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 10mm,Housing material: PA66,450V/24A,2.5mm² wire range,12Pin,White.
KLS2-FT011-12HP-02P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,02Pin,White.
KLS2-FT011-12HP-03P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,03Pin,White.
KLS2-FT011-12HP-04P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,04Pin,White.
KLS2-FT011-12HP-05P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,05Pin,White.
KLS2-FT011-12HP-06P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,06Pin,White.
KLS2-FT011-12HP-07P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,07Pin,White.
KLS2-FT011-12HP-08P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,08Pin,White.
KLS2-FT011-12HP-09P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,09Pin,White.
KLS2-FT011-12HP-10P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,10Pin,White.
KLS2-FT011-12HP-11P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,11Pin,White.
KLS2-FT011-12HP-12P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 12mm,Housing material: PA66,750V/41A,6mm² wire range,12Pin,White.
KLS2-FT011-14HP-02P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,02Pin,White.
KLS2-FT011-14HP-03P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,03Pin,White.
KLS2-FT011-14HP-04P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,04Pin,White.
KLS2-FT011-14HP-05P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,05Pin,White.
KLS2-FT011-14HP-06P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,06Pin,White.
KLS2-FT011-14HP-07P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,07Pin,White.
KLS2-FT011-14HP-08P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,08Pin,White.
KLS2-FT011-14HP-09P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,09Pin,White.
KLS2-FT011-14HP-10P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,10Pin,White.
KLS2-FT011-14HP-11P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,11Pin,White.
KLS2-FT011-14HP-12P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 13.5mm,Housing material: PA66,750V/57A,10mm² wire range,12Pin,White.
KLS2-FT011-16HP-02P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,02Pin,White.
KLS2-FT011-16HP-03P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,03Pin,White.
KLS2-FT011-16HP-04P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,04Pin,White.
KLS2-FT011-16HP-05P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,05Pin,White.
KLS2-FT011-16HP-06P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,06Pin,White.
KLS2-FT011-16HP-07P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,07Pin,White.
KLS2-FT011-16HP-08P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,08Pin,White.
KLS2-FT011-16HP-09P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,09Pin,White.
KLS2-FT011-16HP-10P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,10Pin,White.
KLS2-FT011-16HP-11P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,11Pin,White.
KLS2-FT011-16HP-12P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 14.5mm,Housing material: PA66,750V/76A,16mm² wire range,12Pin,White.
KLS2-FT011-18HP-02P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,02Pin,White.
KLS2-FT011-18HP-03P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,03Pin,White.
KLS2-FT011-18HP-04P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,04Pin,White.
KLS2-FT011-18HP-05P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,05Pin,White.
KLS2-FT011-18HP-06P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,06Pin,White.
KLS2-FT011-18HP-07P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,07Pin,White.
KLS2-FT011-18HP-08P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,08Pin,White.
KLS2-FT011-18HP-09P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,09Pin,White.
KLS2-FT011-18HP-10P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,10Pin,White.
KLS2-FT011-18HP-11P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,11Pin,White.
KLS2-FT011-18HP-12P-WFeed Through Terminal Blocks With Pluggable Type,Pitch 16.5mm,Housing material: PA66,750V/101A,25mm² wire range,12Pin,White.
