You are here: Home > Products > Discrete Semiconductors > Fast recovery rectifier diodes
Dip Fast recovery rectifier diodes 0.5A 1A 1.5A Dip Fast recovery rectifier diodes All Products in Fast recovery rectifier diodes

Dip Fast recovery rectifier diodes 0.5A 1A 1.5A

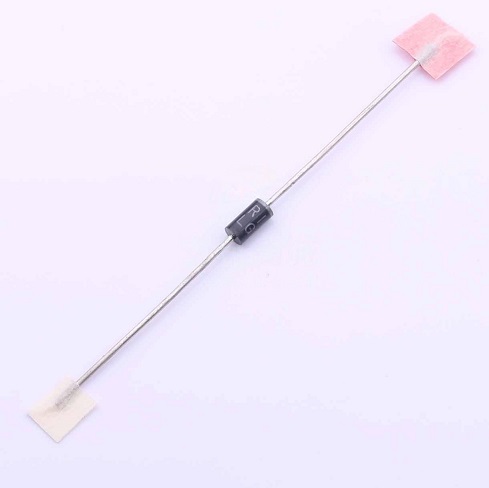

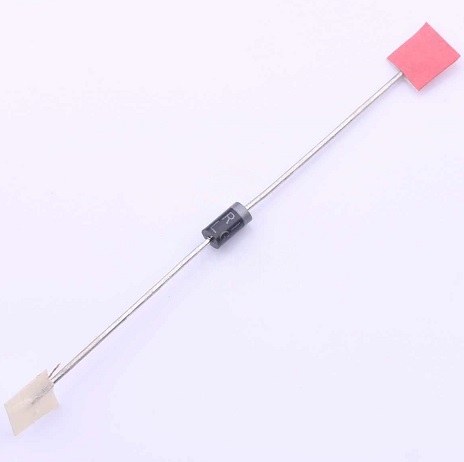

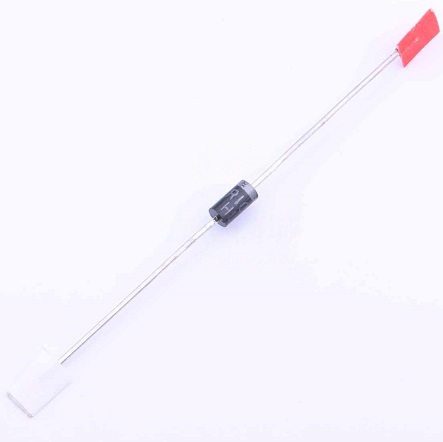

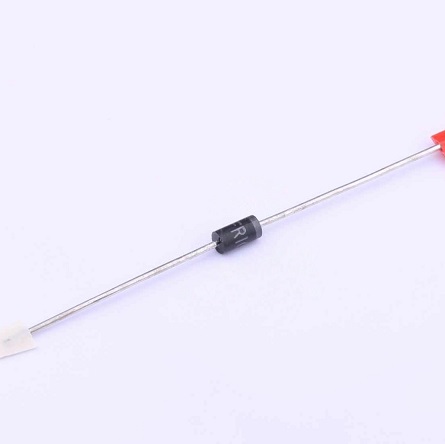

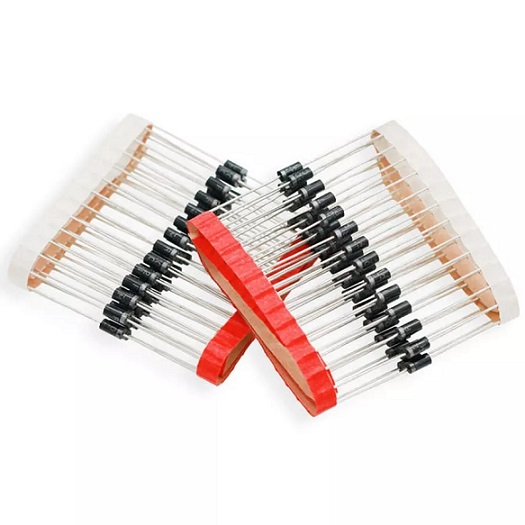

  Product Images
Dip Fast recovery rectifier diodes 0.5A 1A 1.5A Dip Fast recovery rectifier diodes 0.5A 1A 1.5A Dip Fast recovery rectifier diodes 0.5A 1A 1.5A Dip Fast recovery rectifier diodes 0.5A 1A 1.5A

Dip Fast recovery rectifier diodes 0.5A 1A 1.5A


  Product Information

Part No. VRRM (V)
max.		 IF (A)
max.		 VF (V)
max		 IFSM (A)
max.		 IR (uA)
max.		 trr (ns)
max		 TJ (°C)
min.		 TJ (°C)
max.		 Package
Outlines
FR05-20 2000 0.5 2 30 5 500 -55 125 DO-41
FR05-18 1800 0.5 2 30 5 500 -55 125 DO-41
FR05-16 1600 0.5 2 30 5 500 -55 125 DO-41
FR05-15 1500 0.5 2 30 5 500 -55 125 DO-41
FR05-14 1400 0.5 2 30 5 500 -55 125 DO-41
FR05-12 1200 0.5 2 30 5 500 -55 125 DO-41
FR107S 1000 1 1.3 30 5 500 -55 125 A-405
FR106S 800 1 1.3 30 5 500 -55 125 A-405
FR105S 600 1 1.3 30 5 250 -55 125 A-405
FR104S 400 1 1.3 30 5 150 -55 125 A-405
FR103S 200 1 1.3 30 5 150 -55 125 A-405
FR102S 100 1 1.3 30 5 150 -55 125 A-405
FR101S 50 1 1.3 30 5 150 -55 125 A-405
FR107G 1000 1 1.3 30 5 500 -55 150 DO-41
FR107 1000 1 1.3 30 5 500 -55 125 DO-41
FR106G 800 1 1.3 30 5 500 -55 150 DO-41
FR106 800 1 1.3 30 5 500 -55 125 DO-41
FR105G 600 1 1.3 30 5 250 -55 150 DO-41
FR105 600 1 1.3 30 5 250 -55 125 DO-41
FR104G 400 1 1.3 30 5 150 -55 150 DO-41
FR104 400 1 1.3 30 5 150 -55 125 DO-41
FR103G 200 1 1.3 30 5 150 -55 150 DO-41
FR103 200 1 1.3 30 5 150 -55 125 DO-41
FR102G 100 1 1.3 30 5 150 -55 150 DO-41
FR102 100 1 1.3 30 5 150 -55 125 DO-41
FR101G 50 1 1.3 30 5 150 -55 150 DO-41
FR101 50 1 1.3 30 5 150 -55 125 DO-41
FR157G 1000 1.5 1.3 60 5 500 -55 150 DO-15
FR157 1000 1.5 1.3 60 5 500 -55 125 DO-15
FR156G 800 1.5 1.3 60 5 500 -55 150 DO-15
FR156 800 1.5 1.3 60 5 500 -55 125 DO-15
FR155G 600 1.5 1.3 60 5 250 -55 150 DO-15
FR155 600 1.5 1.3 60 5 250 -55 125 DO-15
FR154G 400 1.5 1.3 60 5 150 -55 150 DO-15
FR154 400 1.5 1.3 60 5 150 -55 125 DO-15
FR153G 200 1.5 1.3 60 5 150 -55 150 DO-15
FR153 200 1.5 1.3 60 5 150 -55 125 DO-15
FR152G 100 1.5 1.3 60 5 150 -55 150 DO-15
FR152 100 1.5 1.3 60 5 150 -55 125 DO-15
FR151G 50 1.5 1.3 60 5 150 -55 150 DO-15
FR151 50 1.5 1.3 60 5 150 -55 125 DO-15


Part No.Description PCS/CTN G.W.(KG) CMB(m3) Order Qty. Time Order
