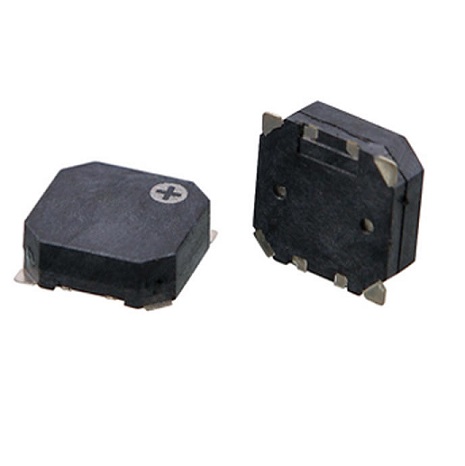

SMD magnetic buzzer,Externally driven type,Side sound KLS3-SMT-7.5*2.5 |
 All Products in SMD magnetic buzzers |
|
 |
SMD magnetic buzzer,Externally driven type,Side sound
Oscillation Frequency: 2.7KHz
Rated Voltage: 3.6Vo-p
Operating Voltage: 2.5~4.5Vo-p
Rated Current: 100mA Max.at Rated Voltage
Sound Pressure Level: 80dB Min.at 10 cm at Rated Voltage
Coil Resistance: 16±3Ω
Operating Temp: -40~+105°C
Weight: 0.8g
Housing Material: LCP
Size:
|
| Part No. | Description | PCS/CTN | G.W.(KG) | CMB(m3) | Order
Qty. | Time | Order |
|
|
