SMD magnetic buzzer,Externally driven type,Top sound KLS3-SMT-05*03 |
All Products in SMD magnetic buzzers |
|
|

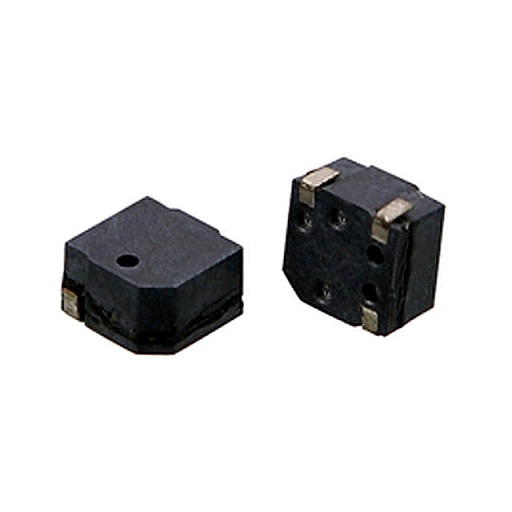

SMD magnetic buzzer,Externally driven type,Top sound
Oscillation Frequency: 4.0KHz
Rated Voltage: 3Vo-p
Operating Voltage: 2~4Vo-p
Rated Current: 110mA Max.at Rated Voltage
Sound Pressure Level: 75dB Min.at 10 cm at Rated Voltage
Coil Resistance: 12±3Ω
Operating Temp: -40~+105°C
Weight: 0.6g
Housing Material: LCP
Size:
|
Part No. | Description | PCS/CTN | G.W.(KG) | CMB(m3) | Order
Qty. | Time | Order |
|
|
